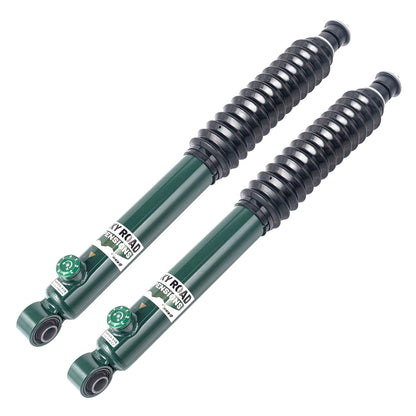

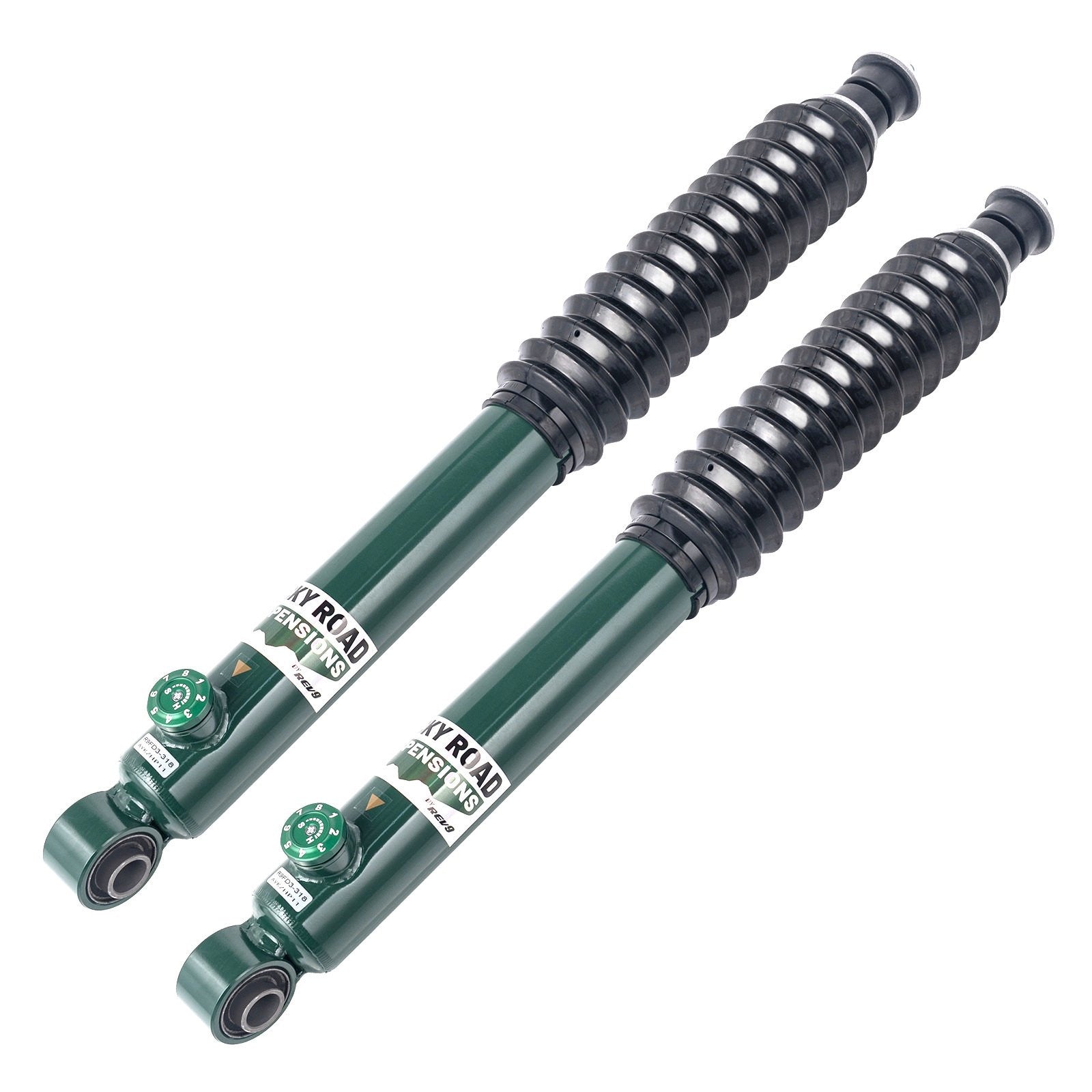

REV9 Rocky Road Adjustable Extended Rear Dampers for Toyota 4Runner (N210/N280) 2003–2024 – 0–1.5" Lift

REV9 Rocky Road Adjustable Extended Rear Dampers for Toyota 4Runner (N210/N280) 2003–2024 – 0–1.5" Lift

Brand: REV9
SKU: R9FD3-318

Upgrade the rear suspension on your Toyota 4Runner (N210/N280) 2003–2024 with the REV9 Rocky Road Adjustable Extended Rear Dampers, designed specifically for vehicles running 0–1.5 inches of rear lift. These extended-length shocks provide the proper suspension travel and damping performance needed for lifted applications where factory shocks fall short.

Featuring 8 levels of rebound adjustment, these dampers allow you to fine-tune your suspension setup for different driving conditions. Set them softer for comfortable daily driving or adjust them firmer when hauling, towing, or taking on rough off-road terrain.

Built with a heavy-duty 57mm twin-tube body, REV9 Rocky Road dampers deliver excellent durability, improved heat dissipation, and consistent performance mile after mile. Whether you're commuting, overlanding, or exploring off-road trails, these shocks provide improved control, stability, and ride quality.

Key Features

• Designed for Toyota 4Runner (N210/N280) 2003–2024

• REV9 Rocky Road Suspension performance series

• Extended length for 0–1.5 inch lifted applications

• 8-level rebound adjustment for customizable suspension tuning

• Durable 57mm twin-tube construction

• Maintains proper suspension travel on lifted vehicles

• Helps reduce harsh bottoming and improves ride comfort

• Ideal for daily driving, towing, and off-road use

Adjustment Guide

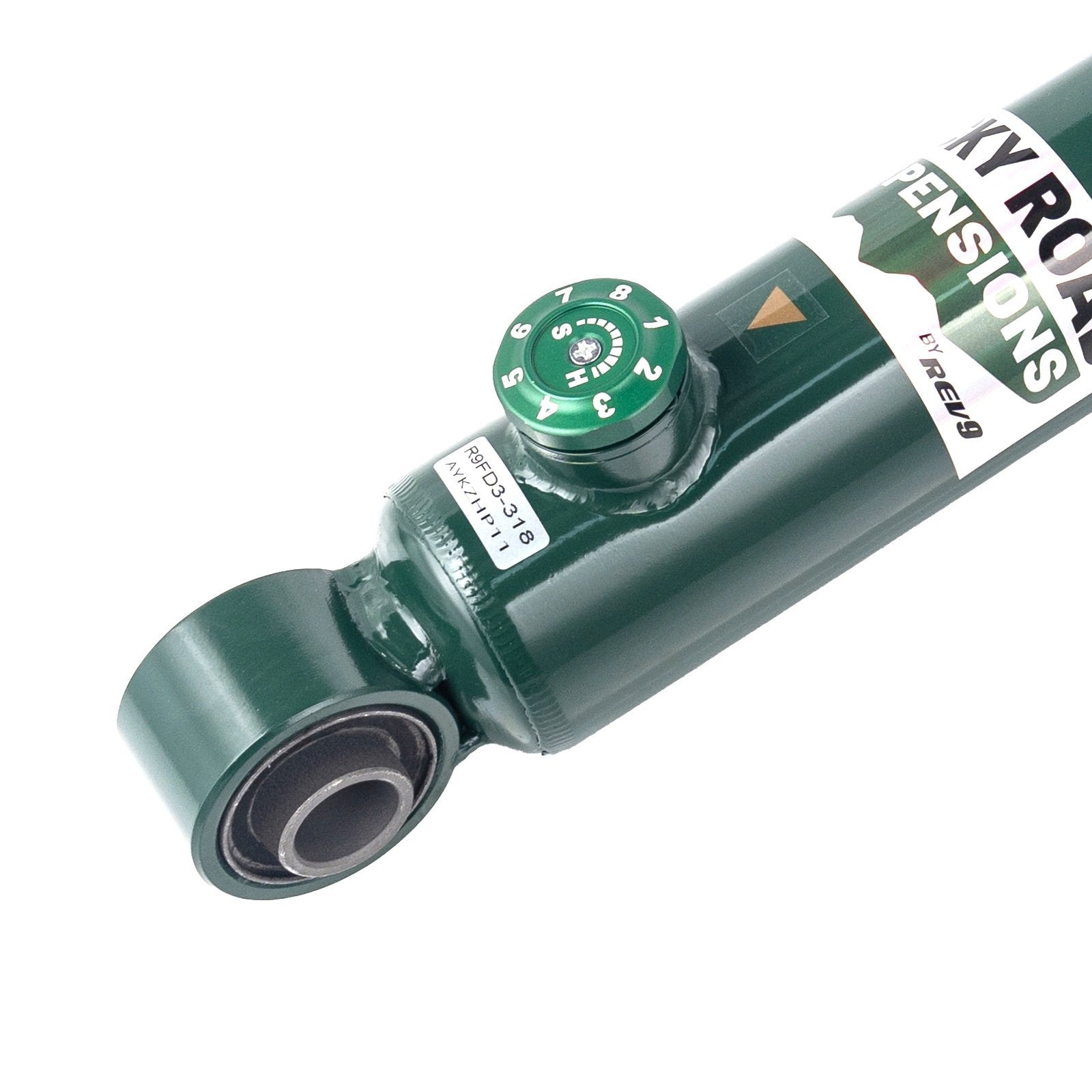

These dampers use a fixed-pointer reference system, where the 12 o’clock position acts as the permanent set point. The adjustment knob rotates 360° for over-torque protection, while precision internal detents lock each adjustment level into place.

• Levels 1–3 (Firm): Heavy loads, towing, off-road driving

• Levels 4–6 (Medium): Mixed driving conditions

• Levels 7–8 (Soft): Comfortable daily driving

Important Note

These components are shock absorbers (dampers) only and do not include coil springs. They do not provide lift by themselves. Lift blocks or coil spacers must be installed separately to achieve lift height. These extended shocks ensure proper suspension performance once the lift is installed.

Specifications

• Damping Levels: 8-Level Adjustable

• Height Adjustment: No

• Extended Length: 600 mm (23.62 in)

• Compressed Length: 373 mm (14.69 in)

• Shock Travel: 227 mm (8.94 in)

Warranty

365-Day Limited Warranty from the date of purchase. Proof of purchase required. Warranty is non-transferable.
