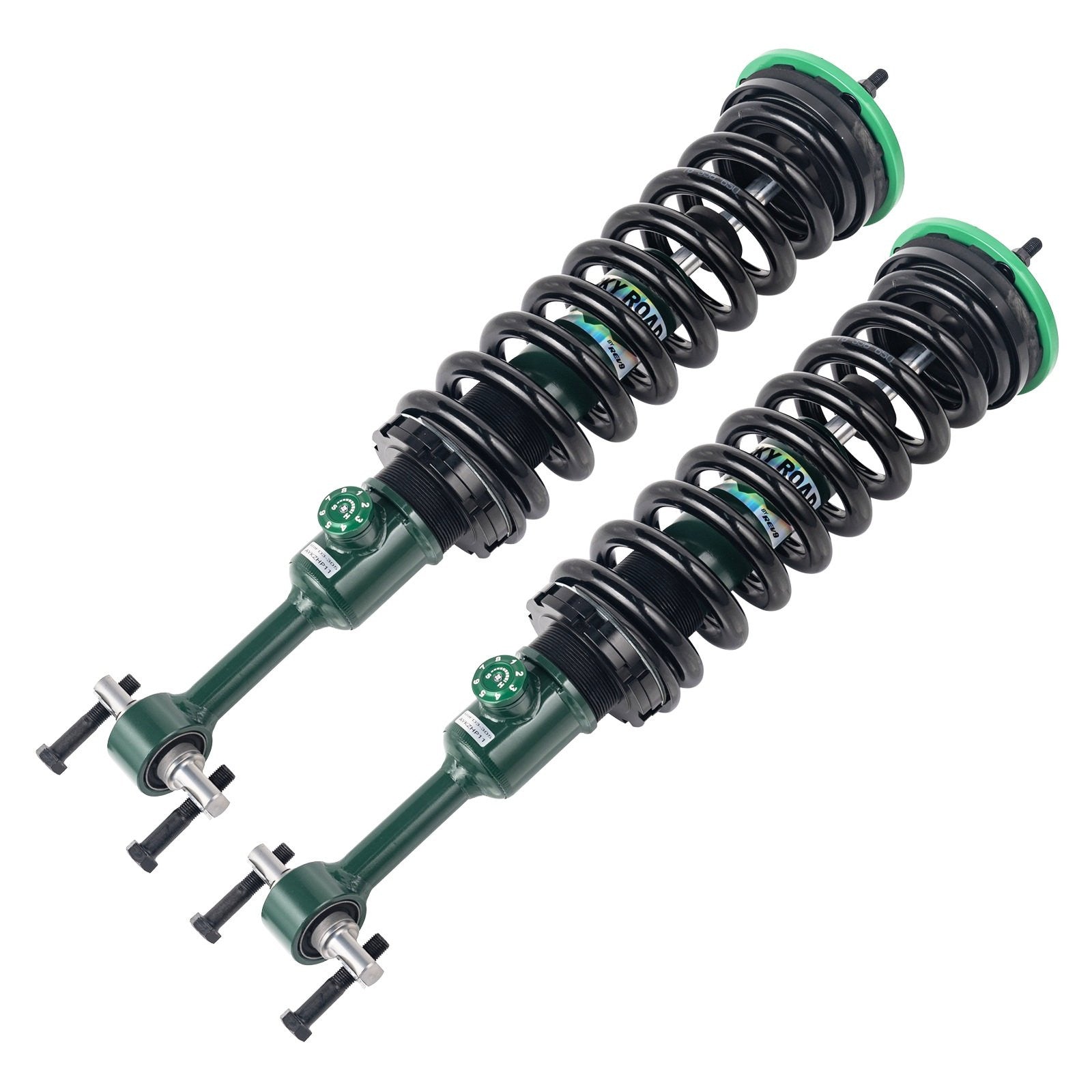

REV9 Rocky Road Adjustable Leveling Front Struts for Ford F150 RWD 2014–2020 – 0–2" Lift

REV9 Rocky Road Adjustable Leveling Front Struts for Ford F150 RWD 2014–2020 – 0–2" Lift

Brand: Rocky Road
SKU: R9FD3-305

Take control of your Ford F150 RWD (2014–2020) with Rocky Road Adjustable Leveling Front Struts, engineered to level your stance and improve handling for lifted or stock setups up to 2 inches. These struts combine adjustable ride height and 8-level damping control, providing a balance of comfort, stability, and performance both on and off-road.

Key Features

• Compatible with Ford F150 RWD 2014–2020

• Adjustable ride height – achieve the perfect stance or clear larger tires

• 8-Level Rebound Adjustment – soft for empty trucks, firm for towing, heavy loads, or off-road use

• Heavy-duty 57mm twin-tube construction – superior strength, heat dissipation, and fade-free performance

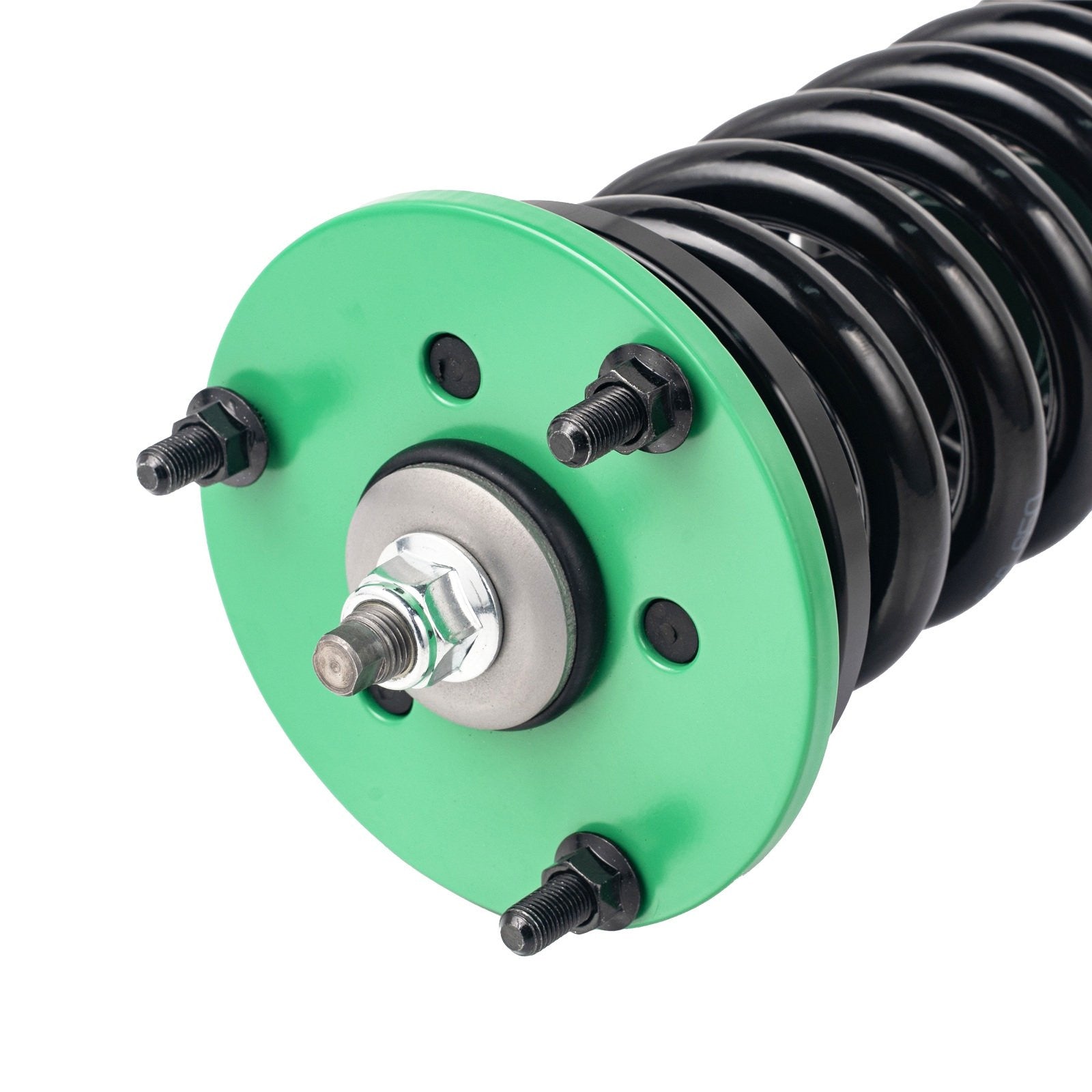

• Standard front top mount included

• Enhanced handling, stability, and load-carrying performance

Adjustment Guide

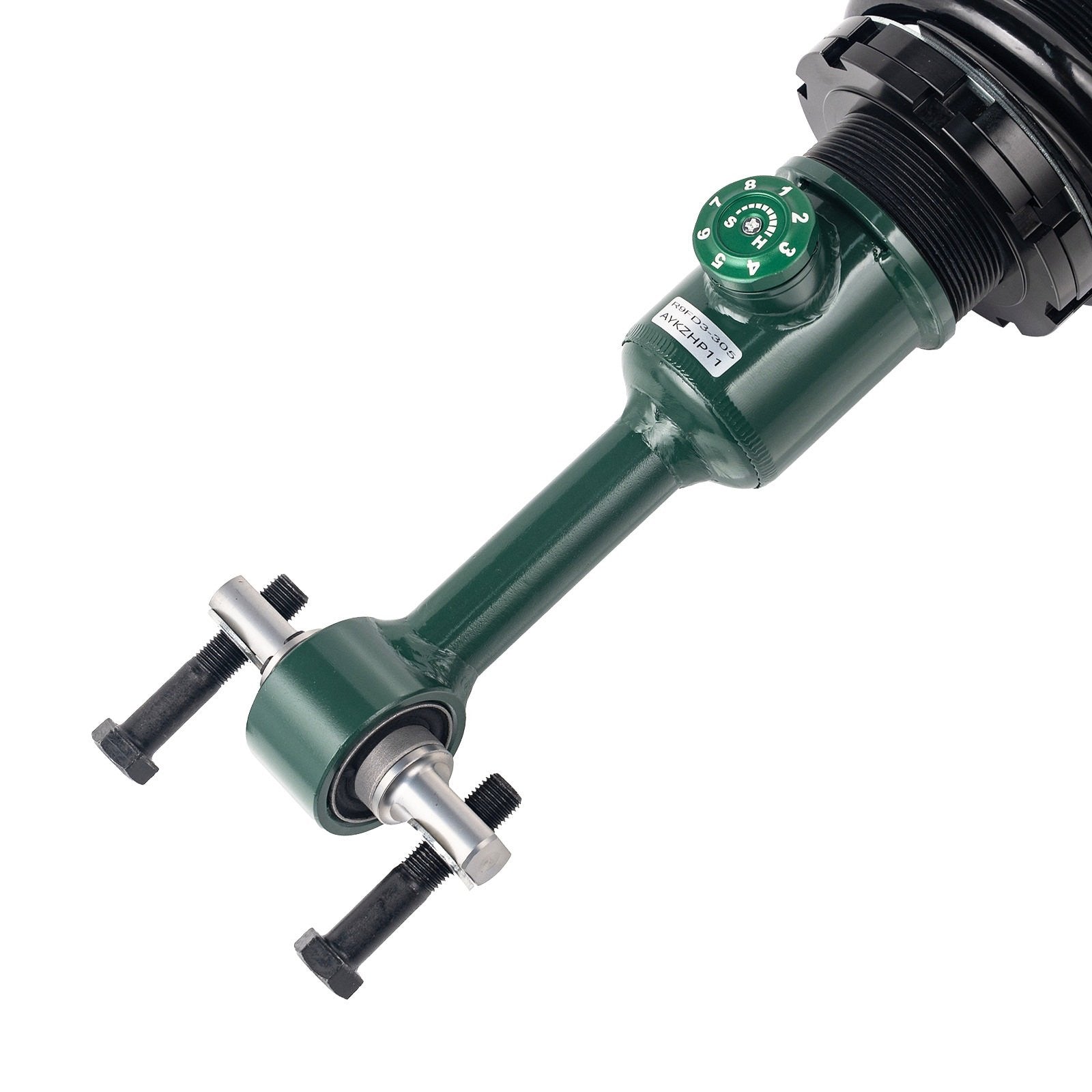

Features a Fixed-Pointer Reference System with the 12 o’clock position as the permanent set point. The knob rotates 360° for over-torque protection, with internal detents locking each level securely.

• Levels 1–3 (Firm): Heavy loads, towing, off-road

• Levels 4–6 (Medium): Mixed use

• Levels 7–8 (Soft): Empty truck, daily driving

Specifications

• Damping Levels: 8-Level Adjustable

• Height Adjustment: Yes

• Spring Rate (Front): 650 lbs/inch

• Spring Length (Front): 356 mm (14.02 in)

• Front Top Mount: Yes, standard type

• Spring Inner Diameter (Front): 75 mm (2.95 in)

• Extended Length: 585 mm (23.03 in)

• Compressed Length: 454 mm (17.87 in)

• Shock Travel: 131 mm (5.16 in)

Important Note

These struts require proper installation for optimal performance. MagneRide-equipped trucks need a module to disable the service light and lift speed limit at 80 mph (sold separately).

Warranty

365-Day Limited Warranty from date of purchase. Proof of purchase required. Warranty is non-transferable.
