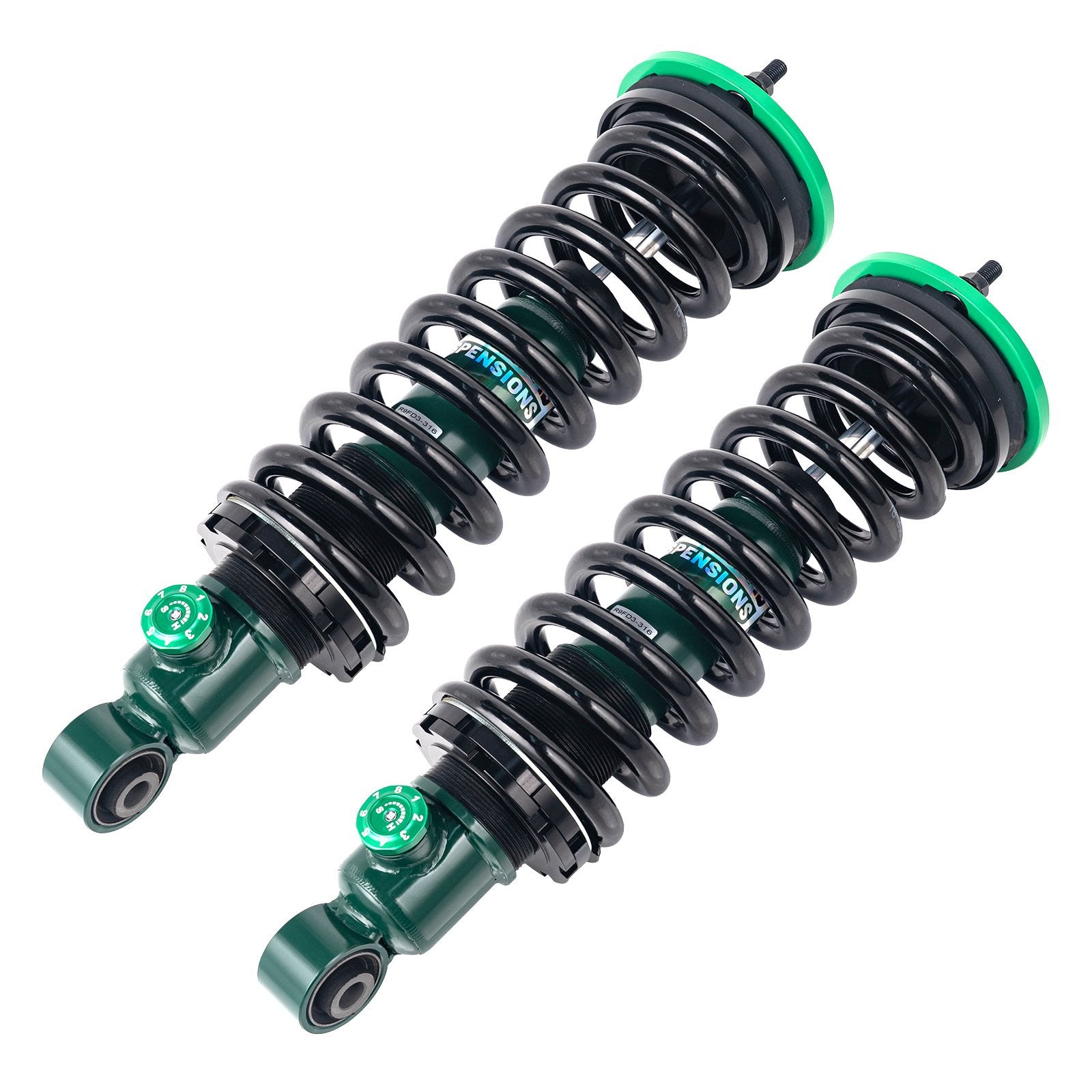

REV9 Rocky Road Adjustable Leveling Front Struts for Nissan Titan 2004–2015 – 0–2" Lift

REV9 Rocky Road Adjustable Leveling Front Struts for Nissan Titan 2004–2015 – 0–2" Lift

Brand: REV9
SKU: R9FD3-316

Upgrade your Nissan Titan 2004–2015 with REV9 Rocky Road Adjustable Leveling Front Struts, engineered for 0–2 inches of lift. These struts provide precise ride height adjustment, improved handling, and enhanced off-road performance, making them ideal for daily driving, towing, or rugged terrain.

With 8 levels of rebound adjustment, you can dial in the suspension from soft for an empty truck to firm for heavy loads or off-road driving. The 57mm heavy-duty twin-tube construction ensures consistent performance, superior strength, and fade-free damping.

Key Features

• Compatible with Nissan Titan 2004–2015

• REV9 Rocky Road Suspension performance series

• Adjustable for 0–2 inches of lift

• 8-level rebound adjustment for customizable damping

• Adjustable ride height for leveling or larger tires

• Heavy-duty 57mm twin-tube body for durability and heat dissipation

• Improved handling, stability, and load-carrying performance

• Enhanced off-road capability and reduced body roll

Adjustment Guide

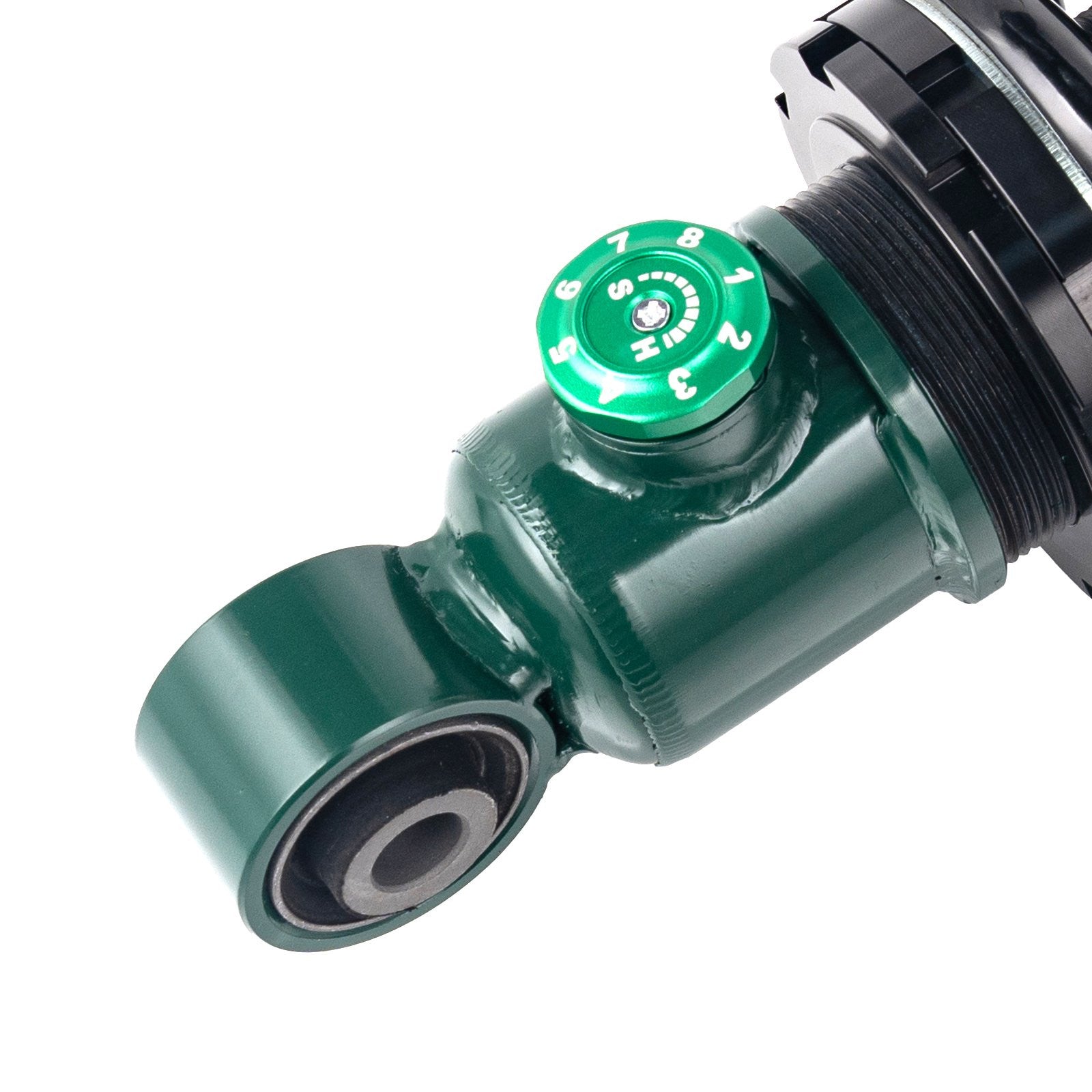

Utilizes a Fixed-Pointer Reference System: the 12 o’clock position is the permanent set point, and the 360° rotation knob provides over-torque protection. Internal detents lock each adjustment securely.

• Levels 1–3 (Firm): Heavy loads, towing, off-road

• Levels 4–6 (Medium): Mixed driving conditions

• Levels 7–8 (Soft): Empty truck, daily driving

Specifications

• Damping Levels: 8-Level Adjustable

• Height Adjustment: Yes

• Spring Rate (Front): 650 lbs/inch

• Spring Length (Front): 356 mm (14.02 in)

• Front Top Mount: Standard Type

• Spring Inner Diameter (Front): 75 mm (2.95 in)

• Extended Length: 447 mm (17.6 in)

• Compressed Length: 337 mm (13.27 in)

• Shock Travel: 110 mm (4.33 in)

Warranty

365-Day Limited Warranty from the date of purchase. Proof of purchase required. Warranty is non-transferable.
