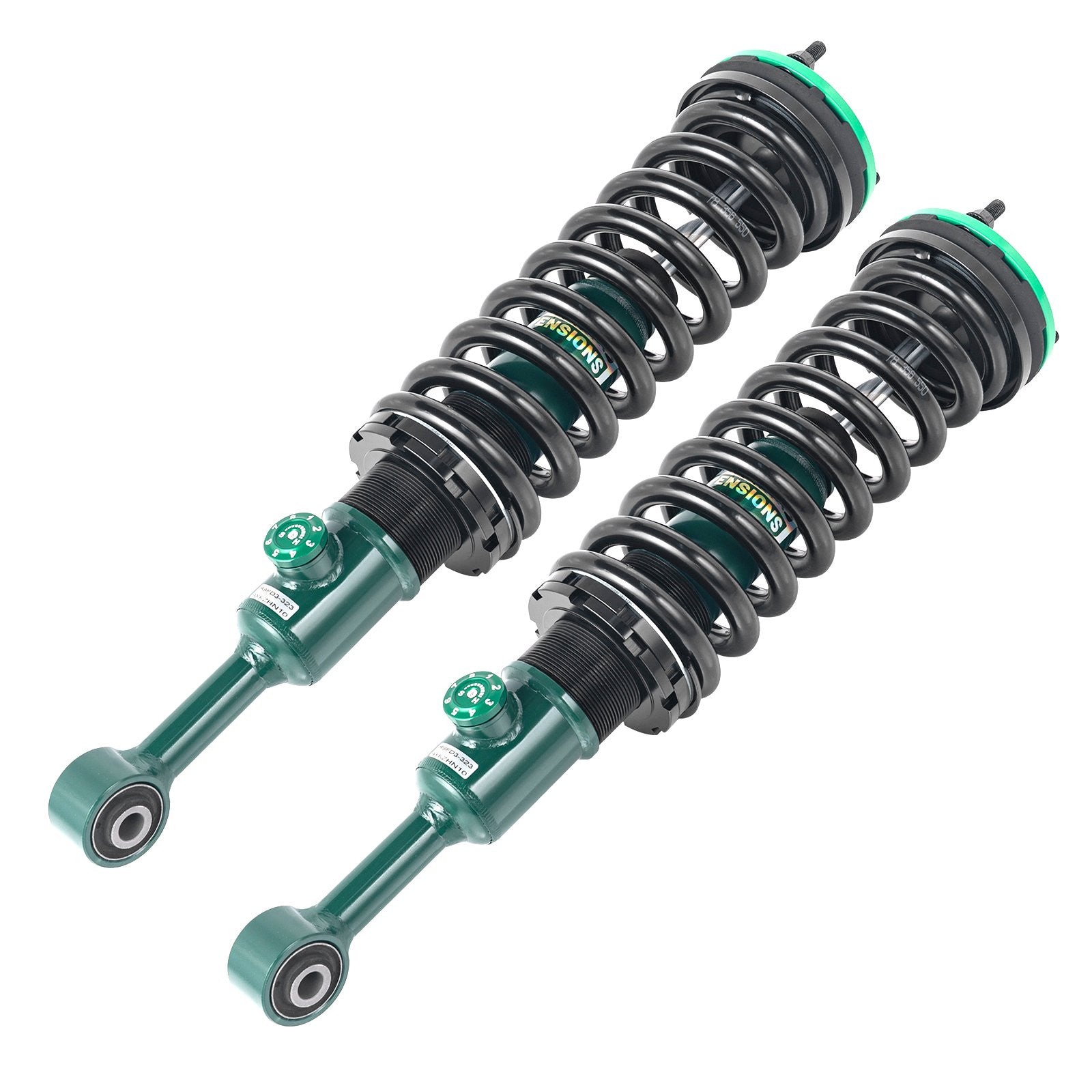

REV9 Rocky Road Adjustable Leveling Front Struts for Toyota Tacoma 4WD (N2X0) 2005–2015 – 0–2" Lift

REV9 Rocky Road Adjustable Leveling Front Struts for Toyota Tacoma 4WD (N2X0) 2005–2015 – 0–2" Lift

Brand: REV9
SKU: R9FD3-323

Upgrade the suspension on your Toyota Tacoma 4WD (N2X0) 2005–2015 with the REV9 Rocky Road Adjustable Leveling Front Struts, engineered to deliver improved ride control, adjustable lift, and dependable performance for both on-road and off-road driving.

These adjustable struts allow you to level the front of your truck or raise it up to 2 inches, helping accommodate larger tires while giving your Tacoma a more aggressive stance. Featuring 8 levels of rebound adjustment, you can fine-tune your suspension from comfortable daily driving to firm performance for towing, hauling, or off-road terrain.

Constructed with a heavy-duty 57mm twin-tube body, these struts provide excellent durability, consistent damping, and improved heat dissipation for long-lasting performance in demanding driving conditions.

Key Features

• Designed for Toyota Tacoma 4WD (N2X0) 2005–2015

• REV9 Rocky Road Suspension performance series

• Adjustable front lift 0–2 inches

• 8-level rebound adjustment for customizable ride quality

• Heavy-duty 57mm twin-tube construction

• Improves handling, stability, and overall ride control

• Helps reduce body roll and enhance off-road capability

• Ideal for daily driving, towing, and off-road applications

Adjustment Guide

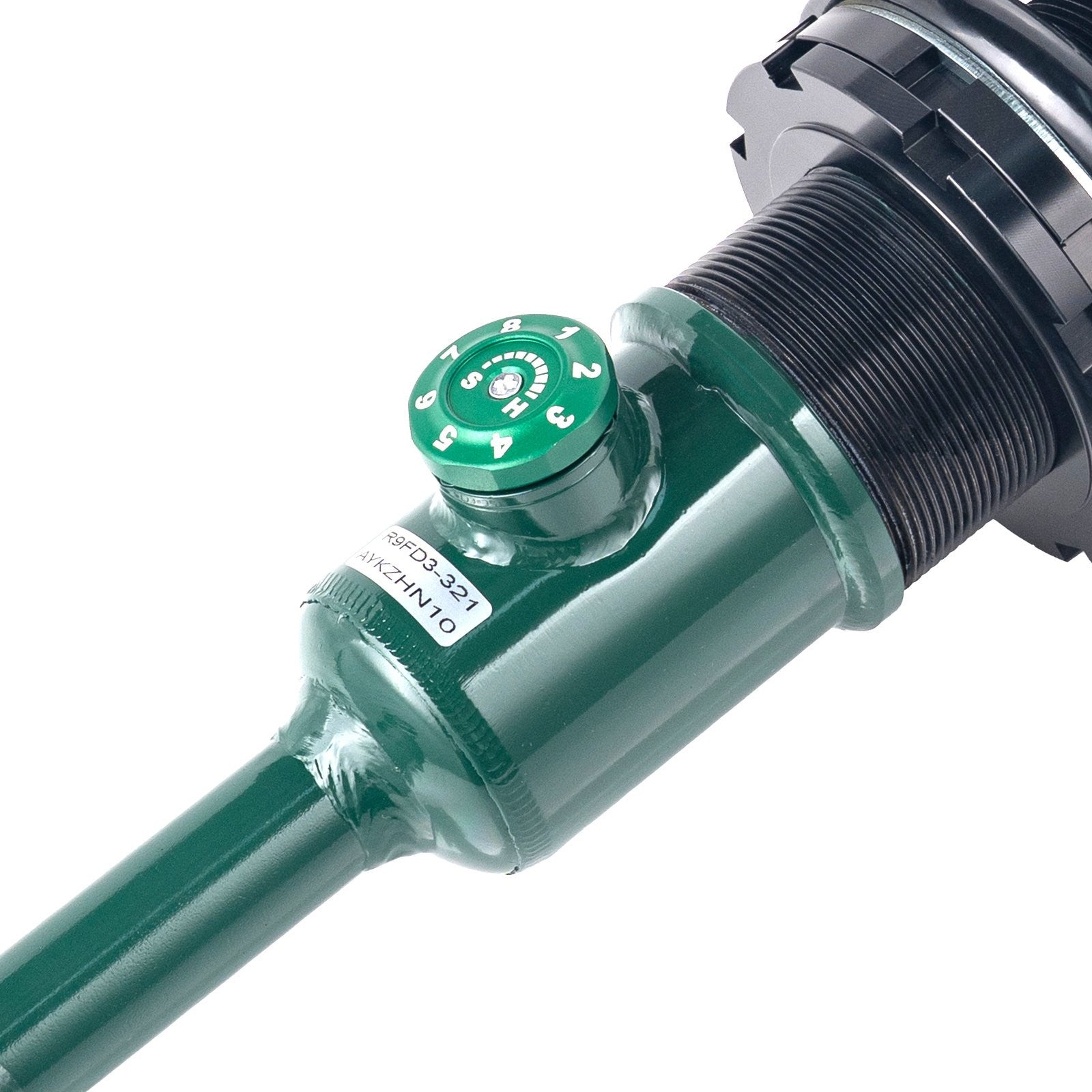

These dampers use a fixed-pointer reference system where the 12 o’clock position serves as the permanent set point. The adjustment knob rotates 360° for over-torque protection, while internal detents lock each level securely in place.

• Levels 1–3 (Firm): Heavy loads, towing, off-road driving

• Levels 4–6 (Medium): Mixed driving and light loads

• Levels 7–8 (Soft): Comfortable daily driving

Specifications

• Height Adjustment: Yes (0–2 inches)

• Damping Levels: 8-level adjustable

• Spring Rate: 650 lbs/in

• Spring Length: 356 mm (14.02 in)

• Spring Inner Diameter: 75 mm (2.95 in)

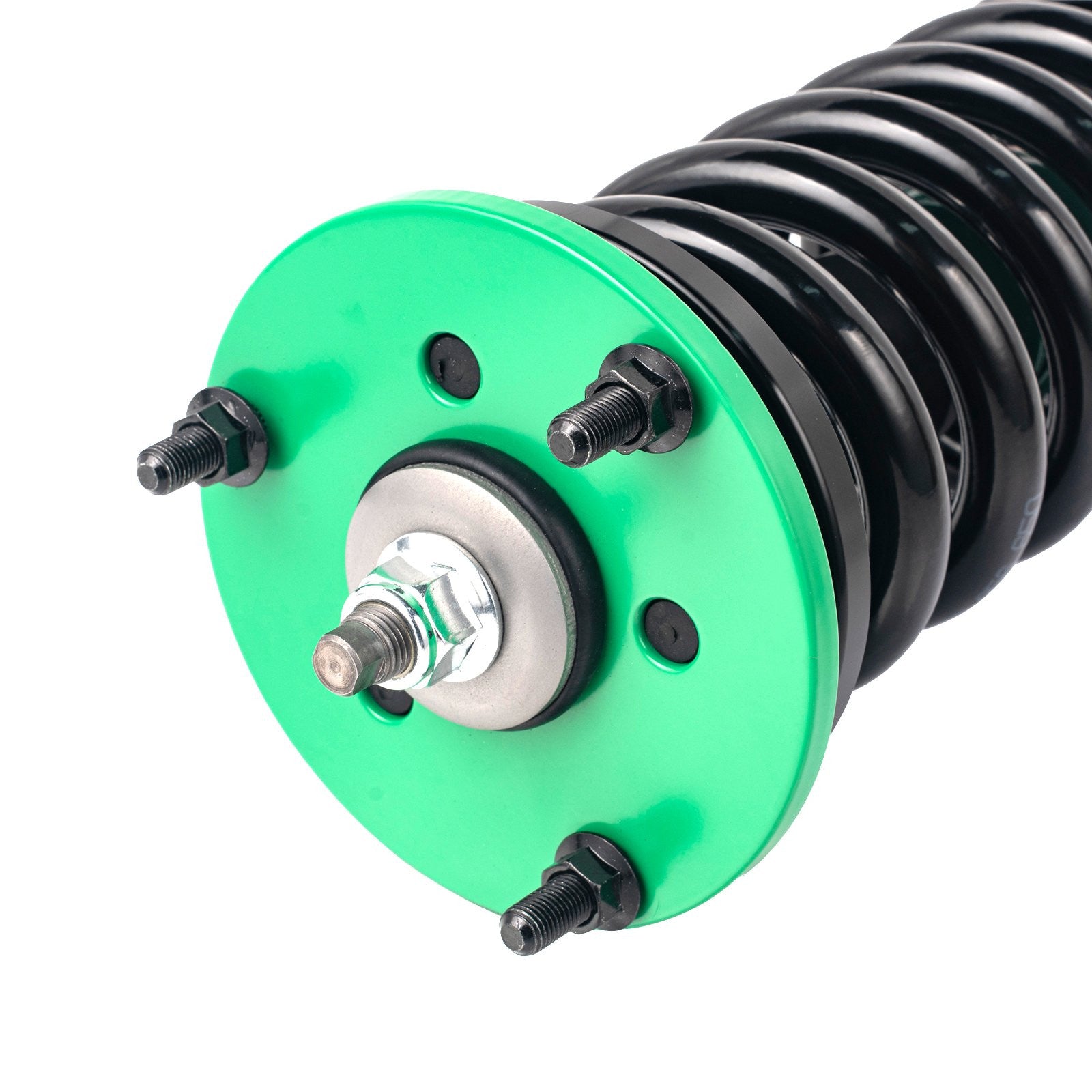

• Front Top Mount: Standard type included

• Extended Length: 565 mm (22.24 in)

• Compressed Length: 425 mm (16.73 in)

• Shock Travel: 140 mm (5.51 in)

Warranty

365-day limited warranty from the date of purchase. Proof of purchase required. Warranty is non-transferable.
