REV9 Subaru BRZ 2013-21 T28 Turbo Kit Setup Stage 1

compatible with Scion FR-S / Toyota 86 FA20 Motor T28 Turbo Kit Setup

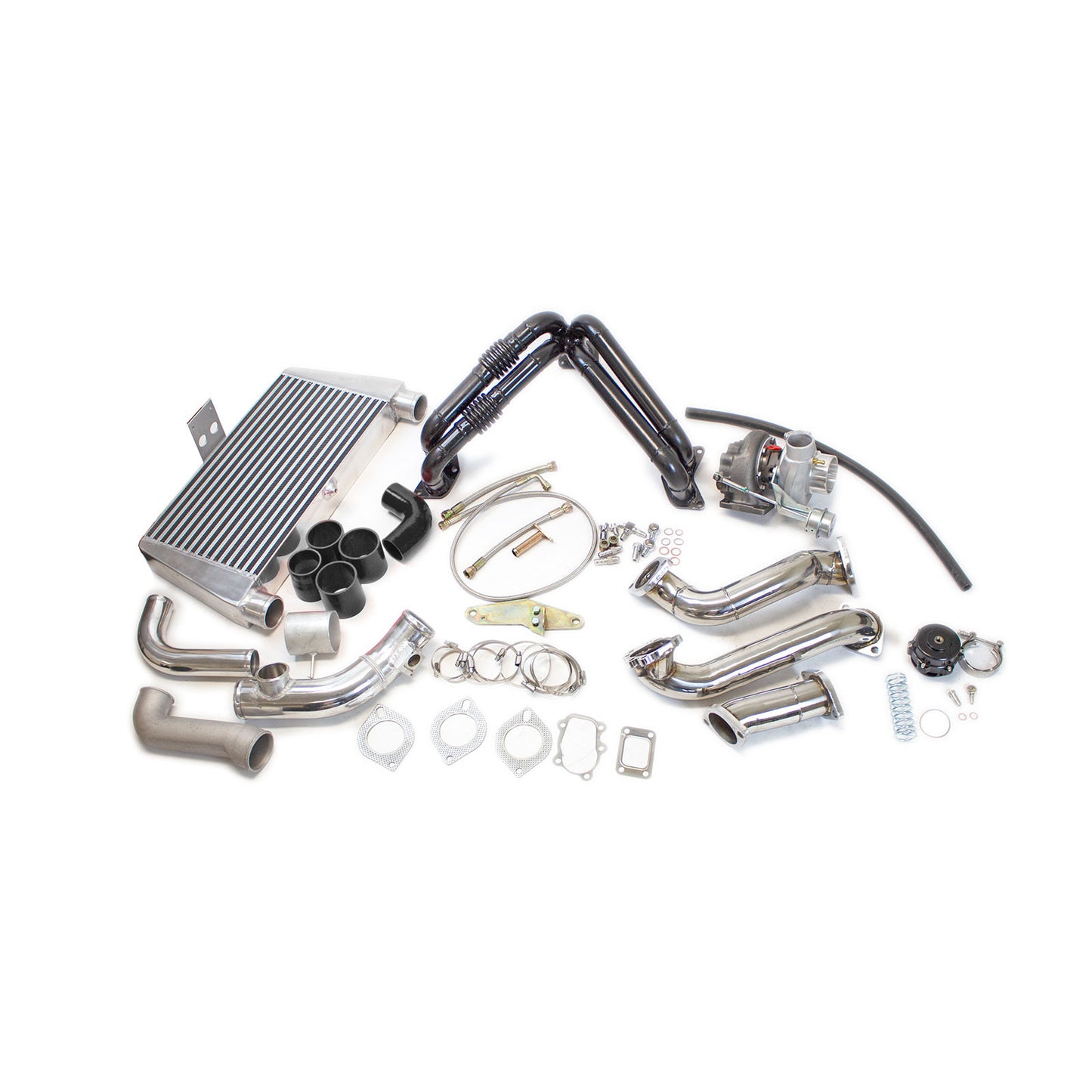

Kit Includes:

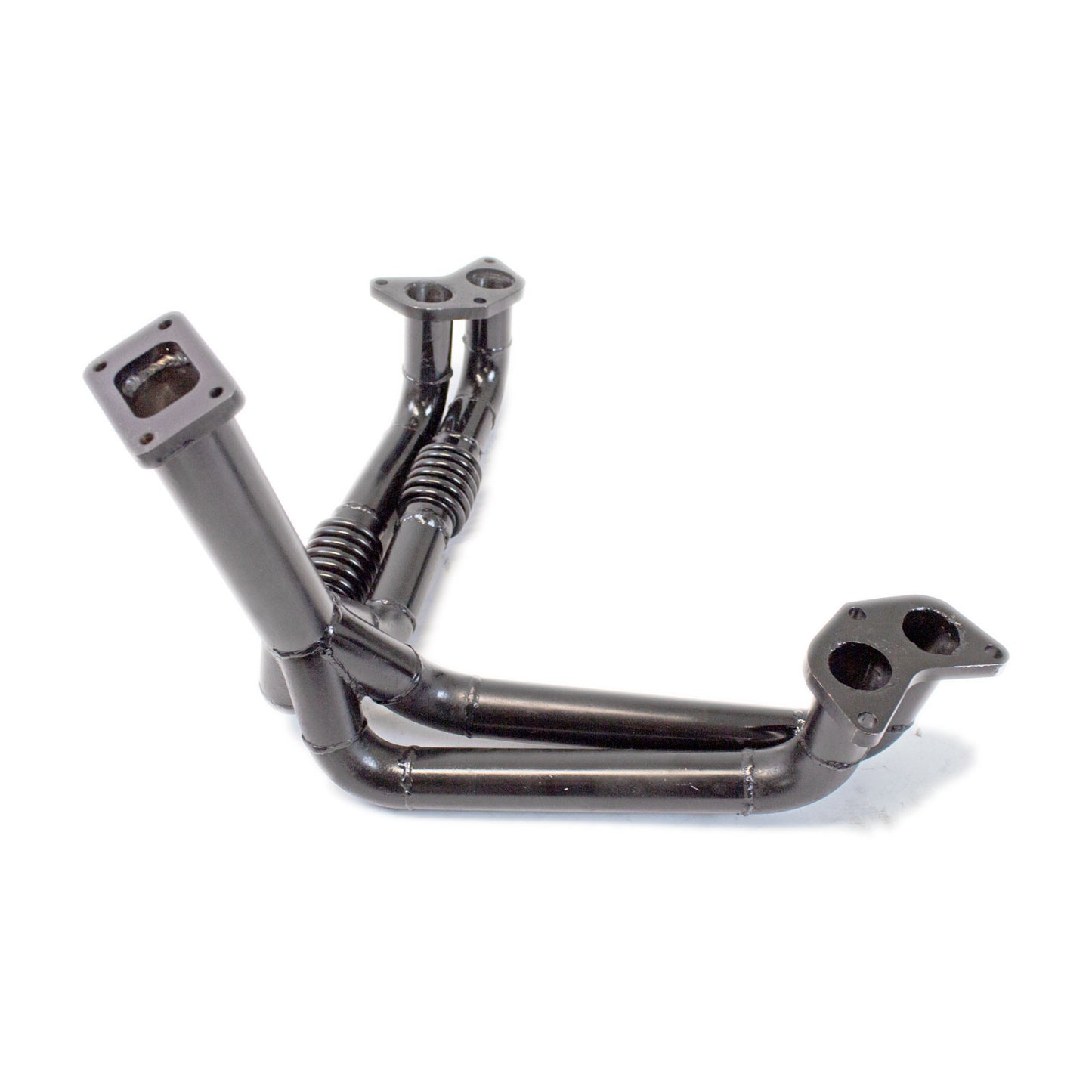

• Cast Turbocharger Equal Runner Manifold Fits FA20 Motor
• T28 Turbocharger .60 AR (350+HP)

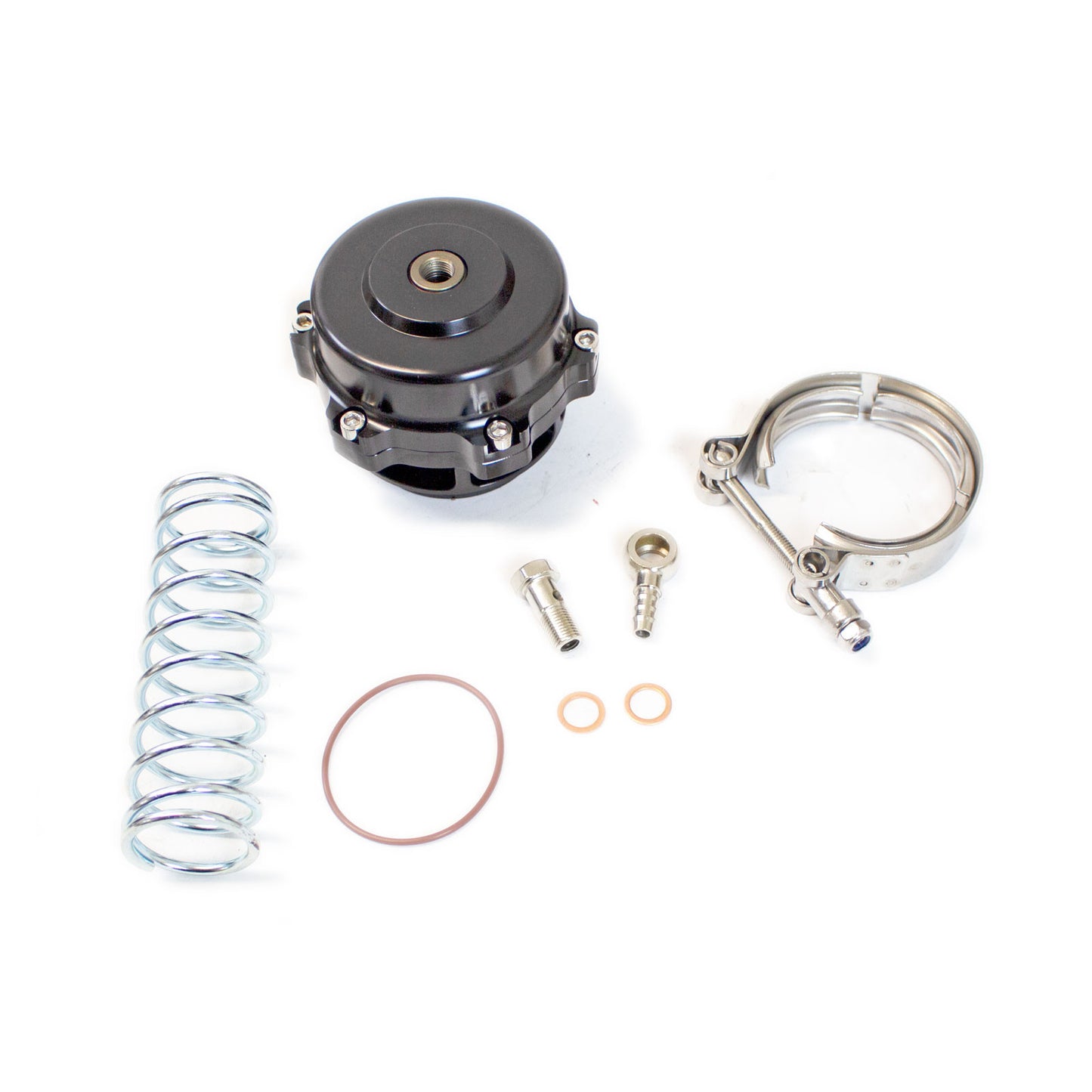

• 38mm Wastegate (Set at 5PSI) Comes With Extra 10 PSI Spring In Order To Make 15 PSI Maximum Setting.

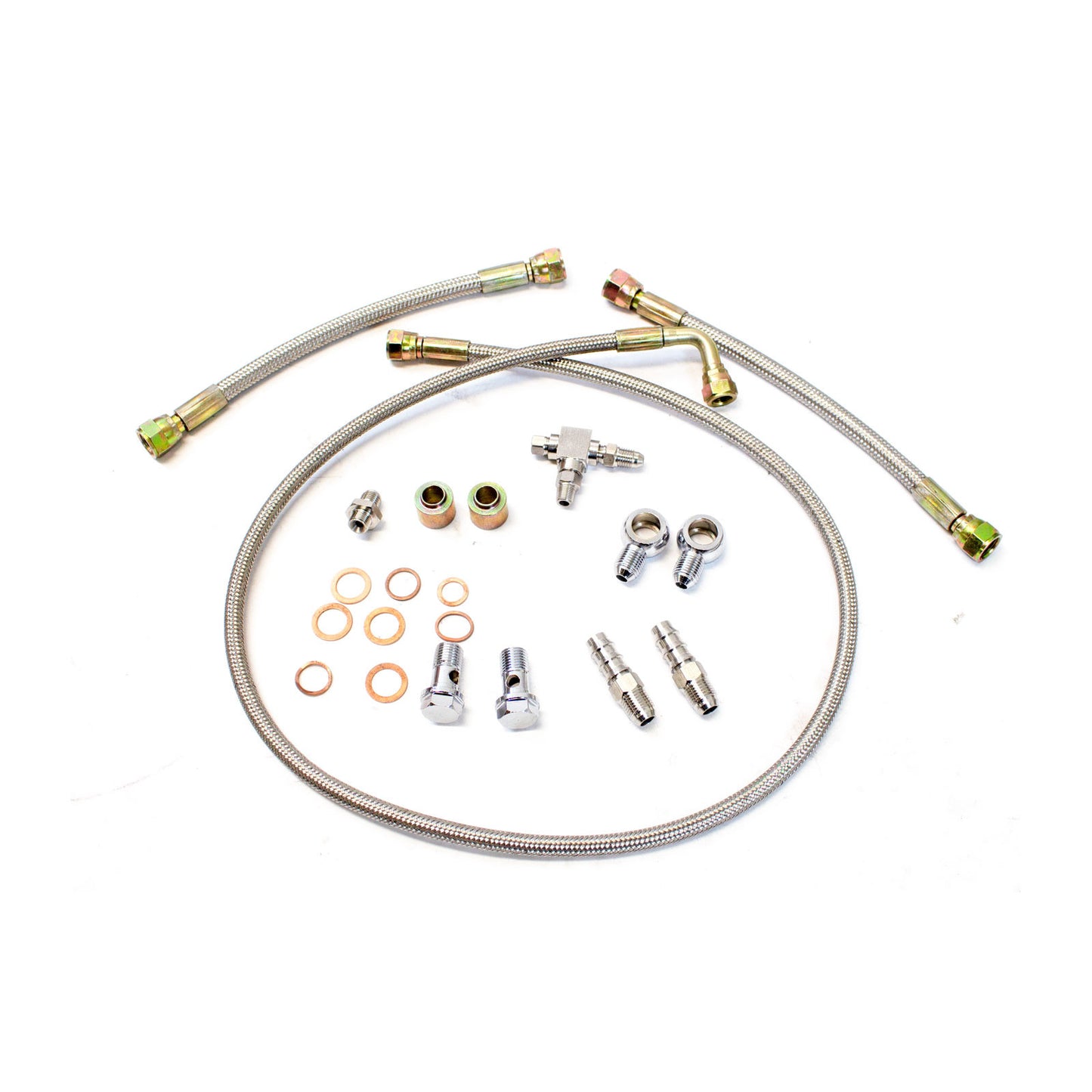

• Oil Line Kit, Oil Feed, Oil Return (With All Fittings)

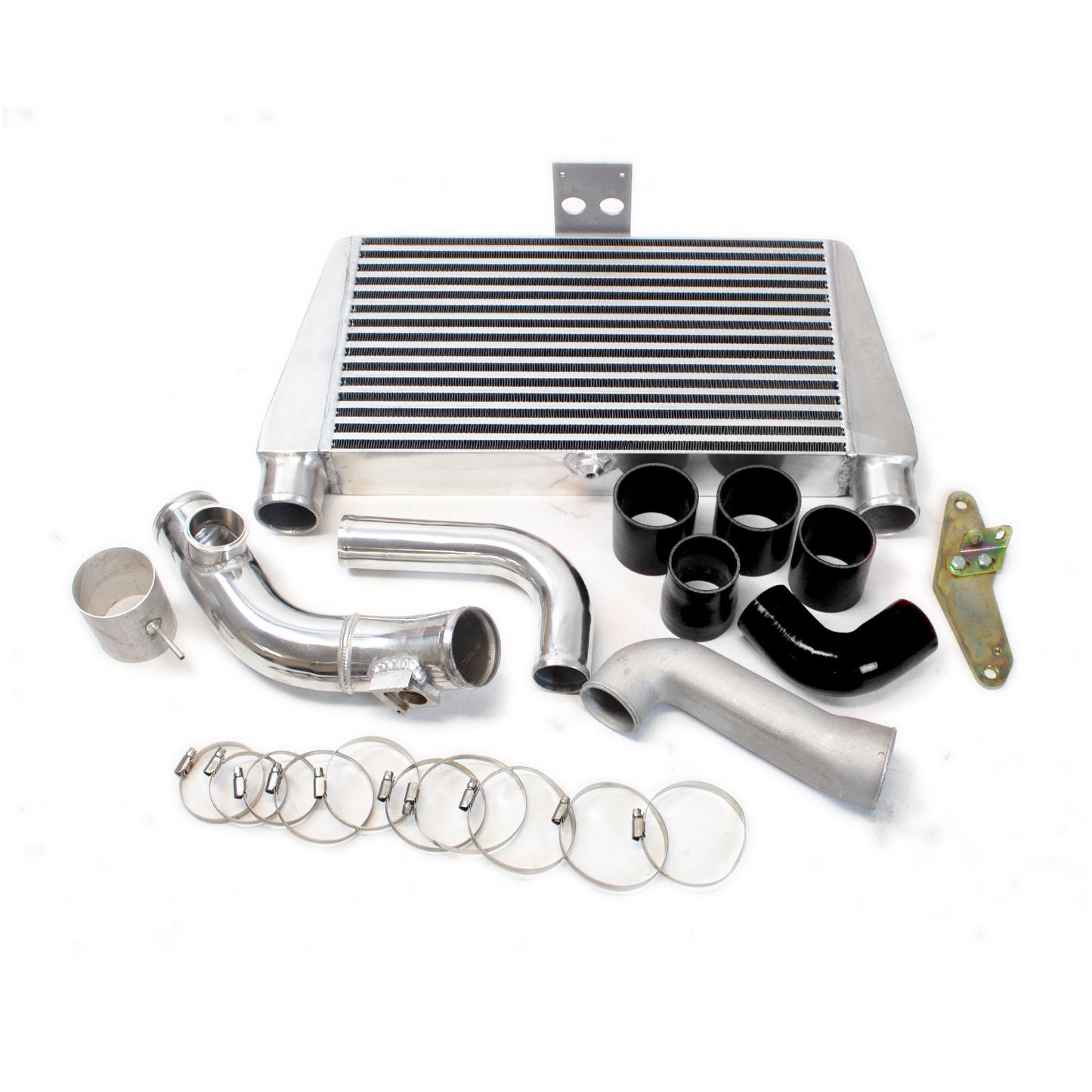

• Front Mount Intercooler Kit

Turbo Specs.:

• Inlet: 3" | Outlet: 2"
• Compressor Trim: .60 A/R
• Compressor Wheel Dia.: 71mm | 52mm
• Turbine Wheel Dia.: 46mm | 53mm
• Exhaust Trim: .64 A/R
• Turbine Flange Type: T25 Flange
• Downpipe Flange Type: 5-Bolt Type
• Cooling Type: Oil And Water
• Horsepower Rating: 300-350 HP (Wet Float Bearing)
• Actuator Set At 8 PSI

Intercooler Specs.:

• Bar And Plate Design
• Inlet / Outlet:  2.5"
• Core Size:  20" X 11" X 3"
• Overall Size: 25" X 15"

Note: Setup kit only. Requires Proper ECU Tuning For Optimum Operation
