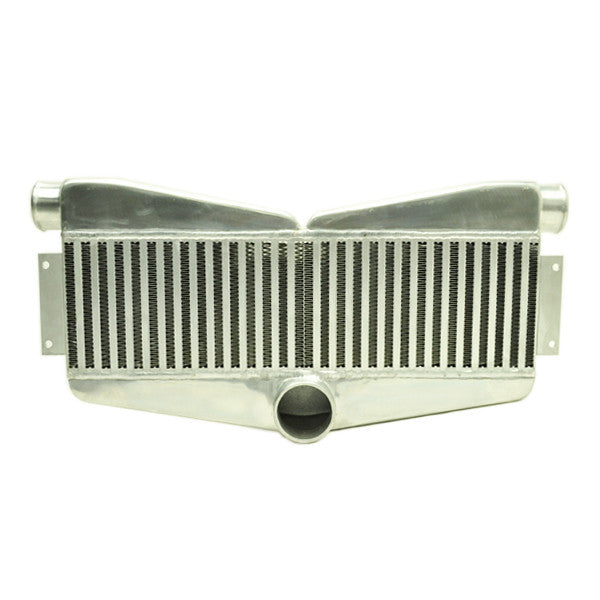

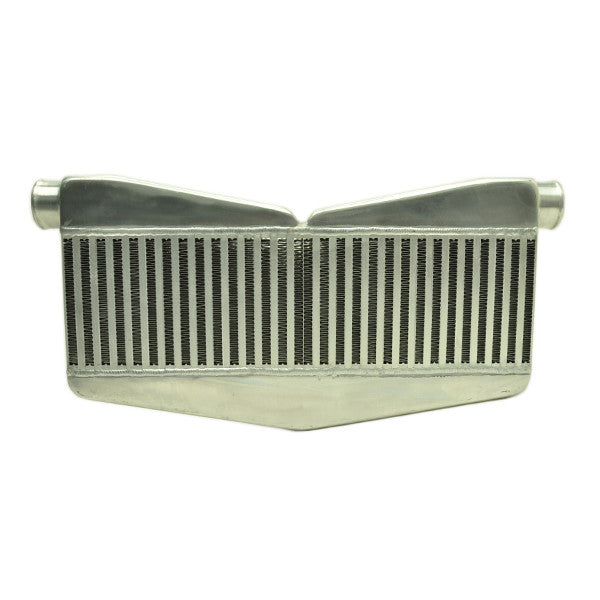

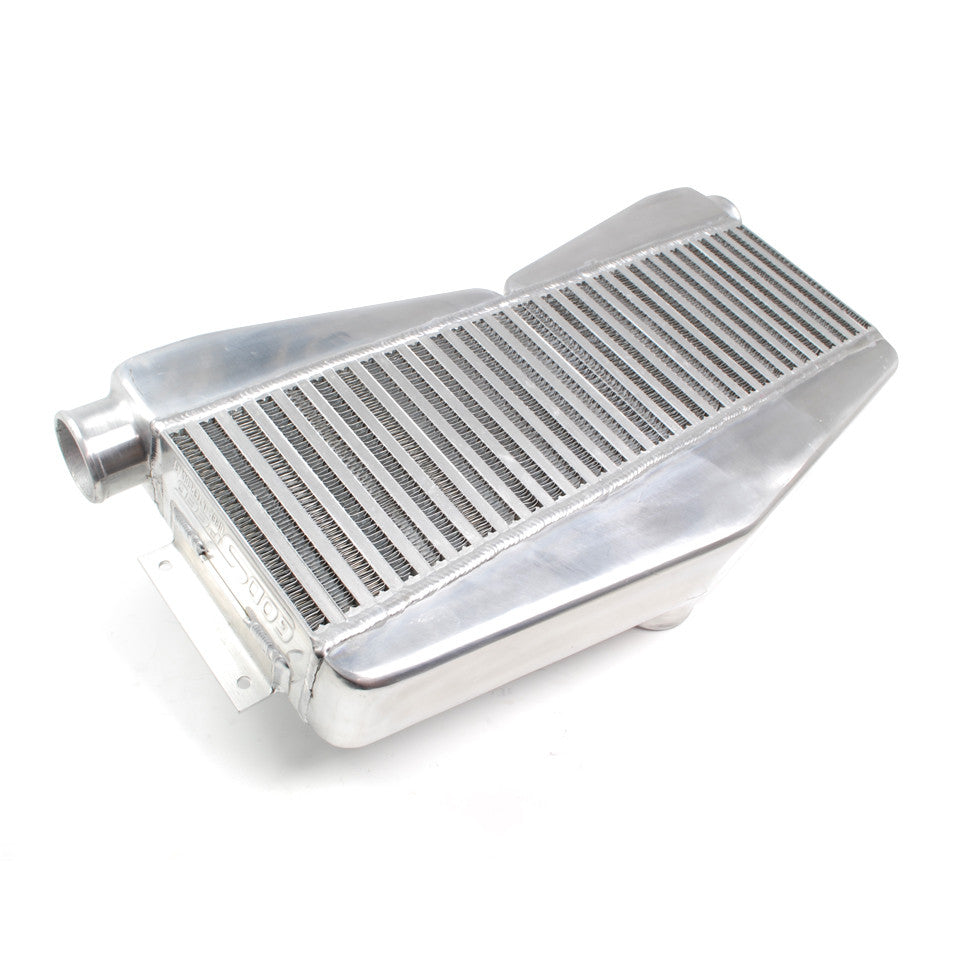

REV9 Twin Turbo Intercooler Type 2 (2 In / 1 Out)

Twin Turbo Type 2 2-In 1-Out Intercooler

Max Horsepower Capacity: 400-800HP

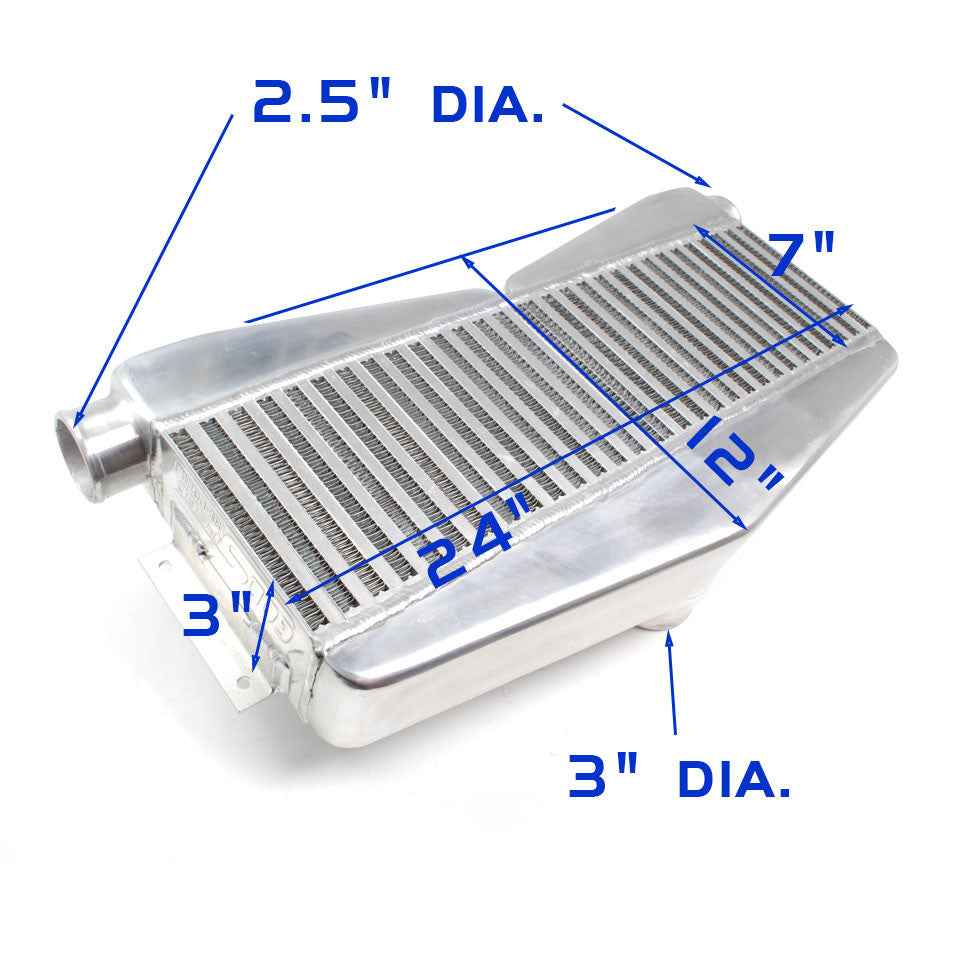

Core Length: 24"
Core Height: 7"
Core Thickness: 3.5"
Top Inlet x1: 3"
Side Outlet x2: 2.5"
Overall Height: 13"
Overall Length: 27"
Pressure Drop: 0.2-0.5 @15psi, 2-5psi @35psi
Material: 100% Aluminum
Design: Bar and Plate=high Flow
Construction: Machine Cut & Stamped, Hand Welded
Finish: Polished
Net Weight: 18 lbs
