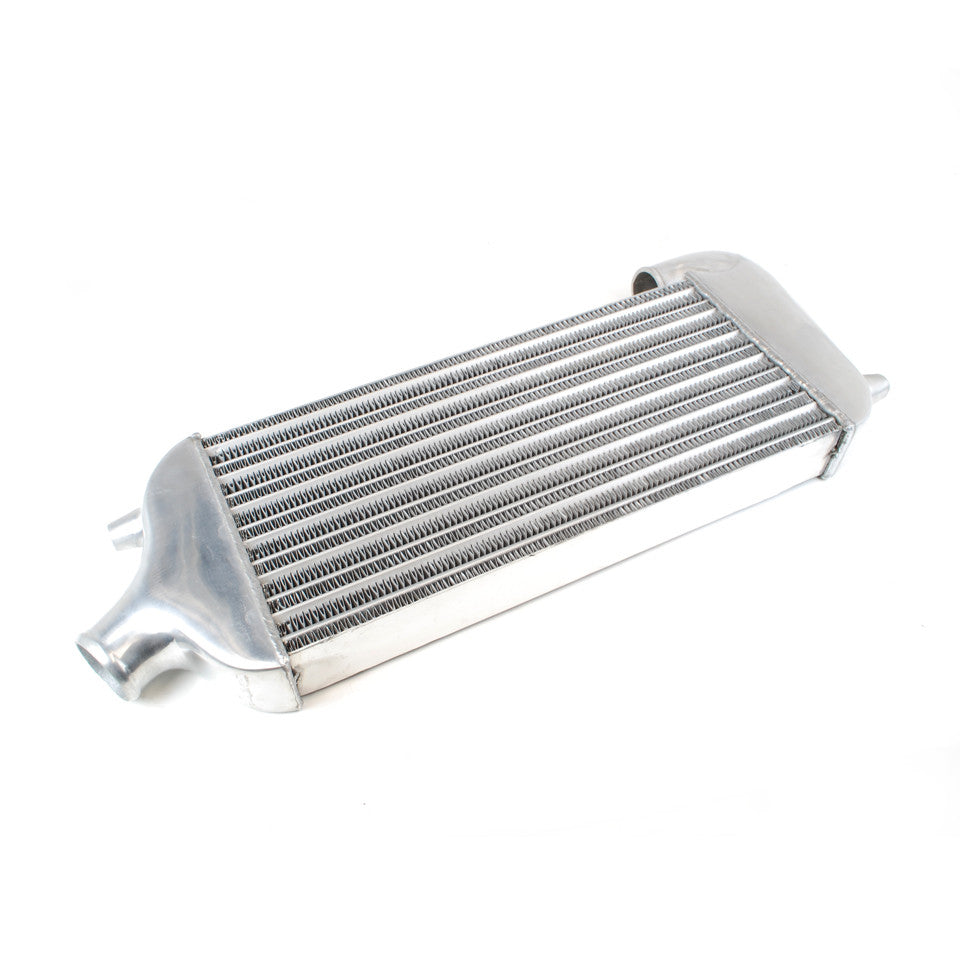

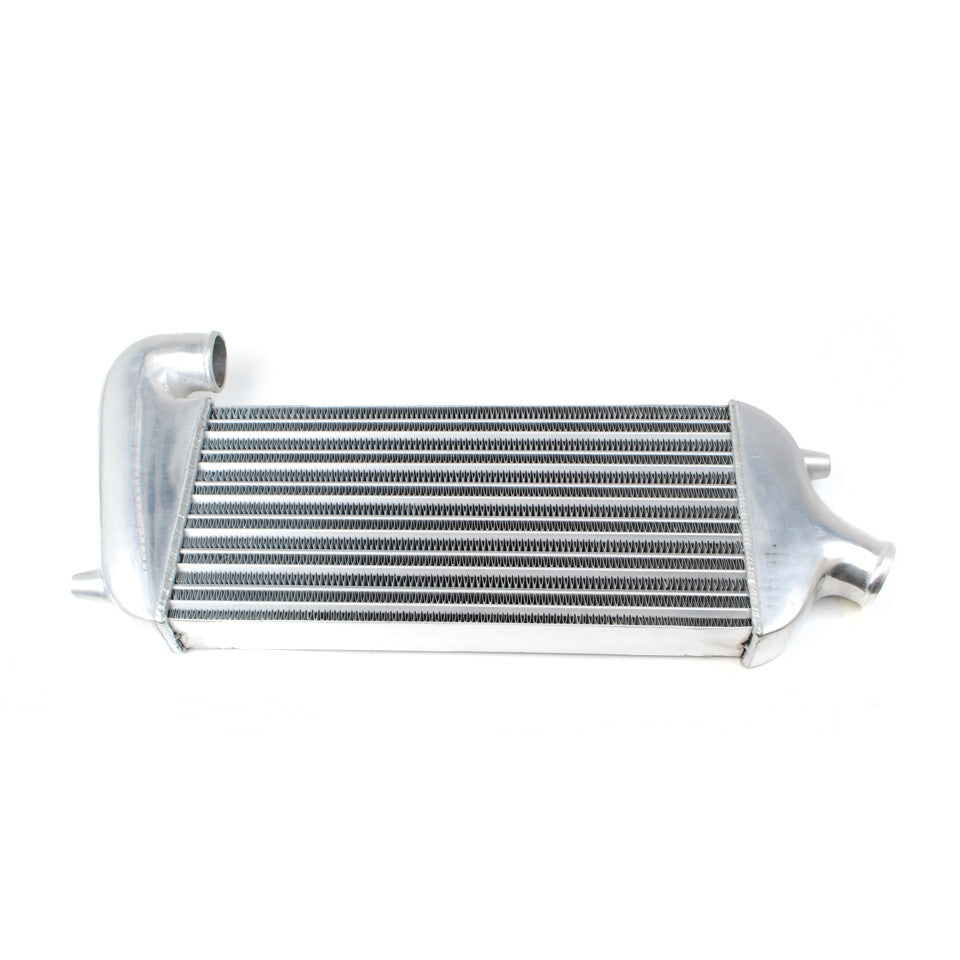

REV9 Type-GD Intercooler

Type-GD Intercooler

Max Horsepower Capacity: 200-400HP

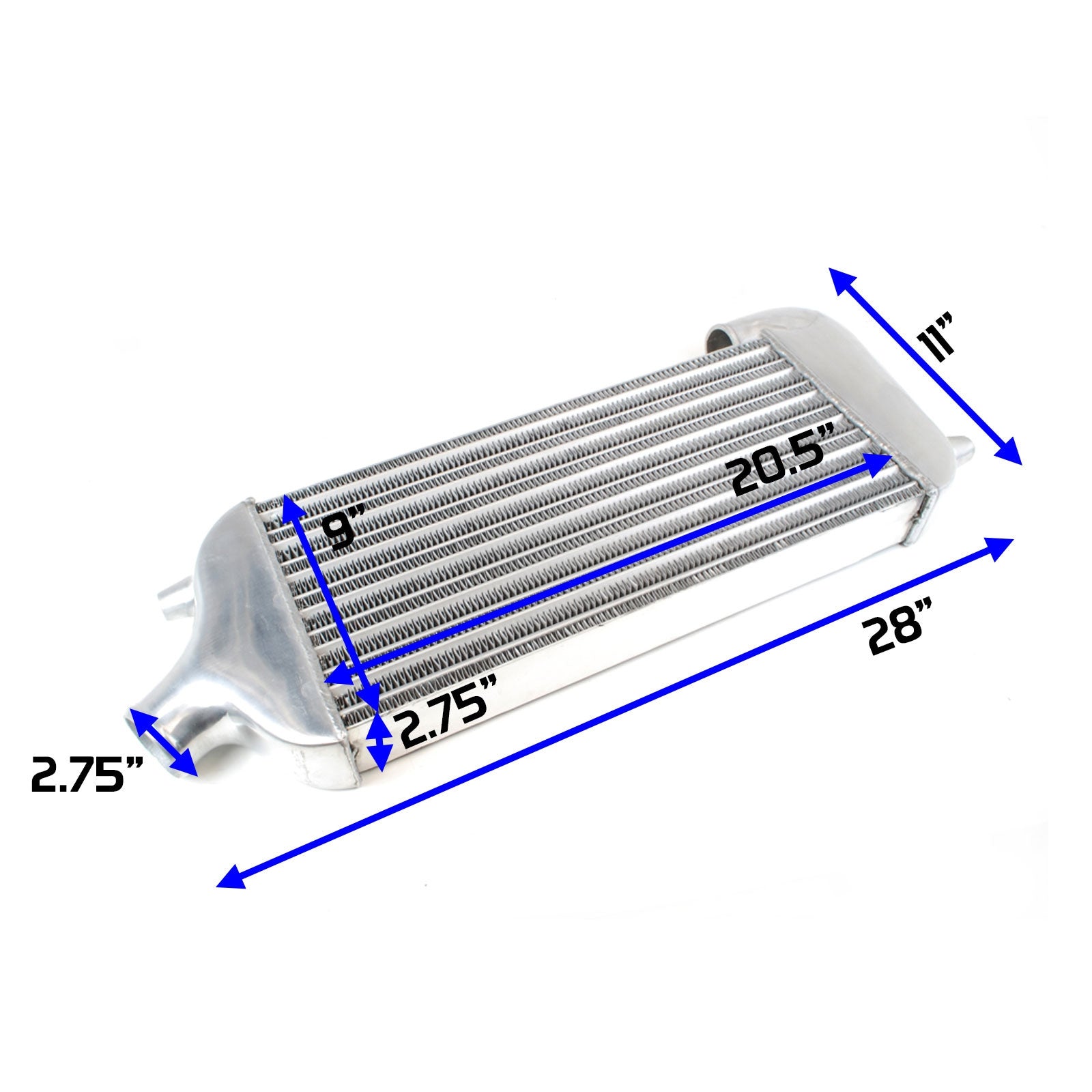

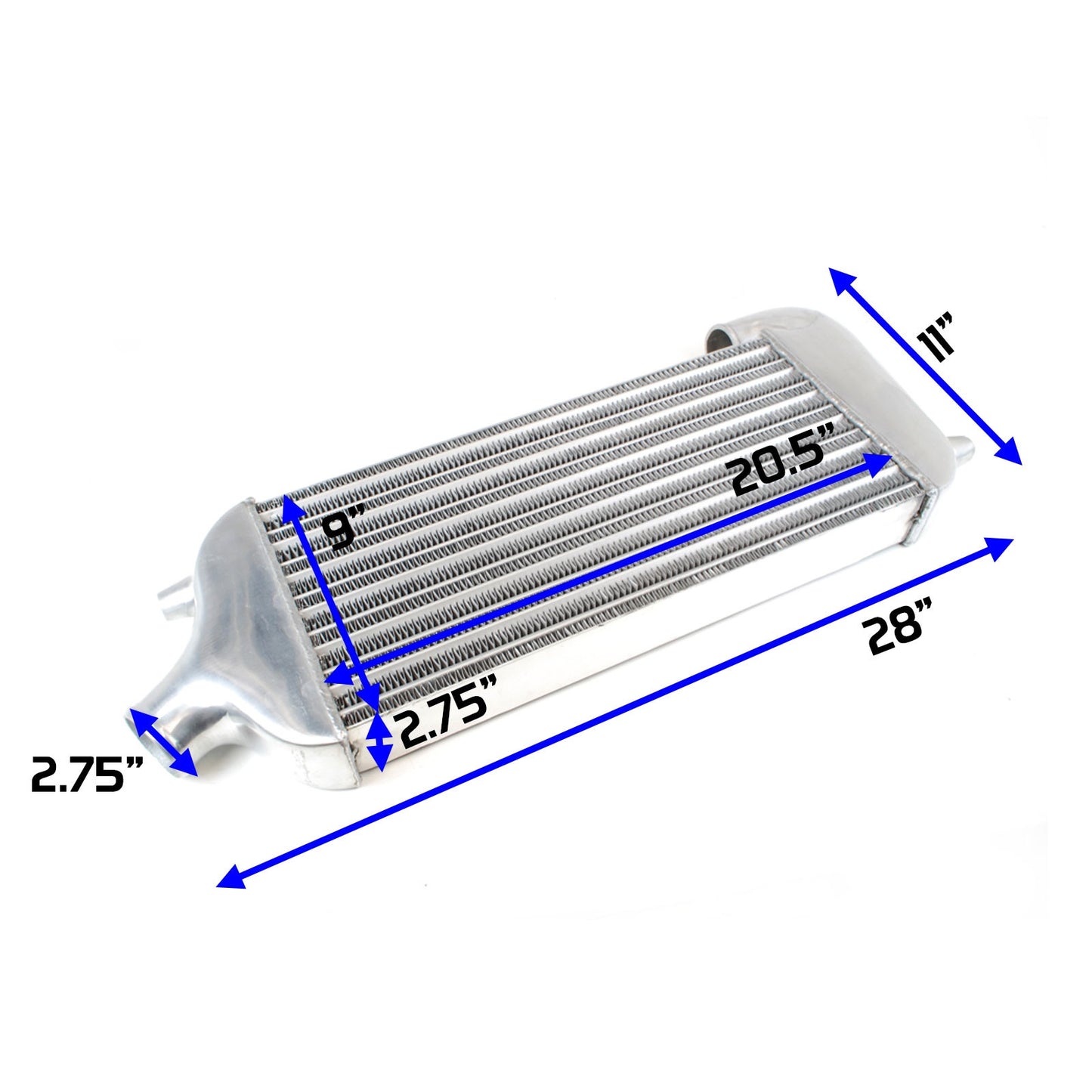

Core Length: 20.5"
Core Height: 9"
Core Thickness: 2.75"
Inlet / Outlet: 2.5"
Working Pressure: 30-35 Psi
Overall Height: 11"
Overall Length: 28"
Pressure Drop: 0.2-0.5 @15psi, 2-5psi @35psi
Material: 100% Aluminum
Design: Tube and Fin
Construction: Machine Cut & Stamped, Hand Welded
Finish: Polished
Net Weight: 15 lbs
