REV9 Universal Type-Z Intercooler, Aluminum Bar And Plate Design

Universal Type-Z Intercooler Aluminum Bar And Plate

Max Horsepower Capacity: 200-500HP

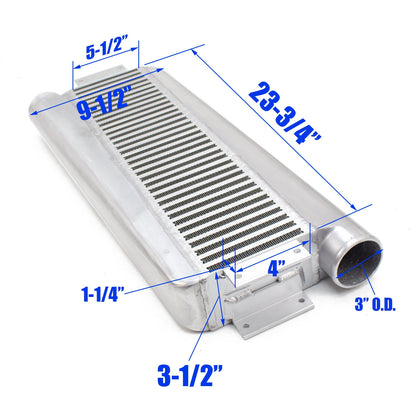

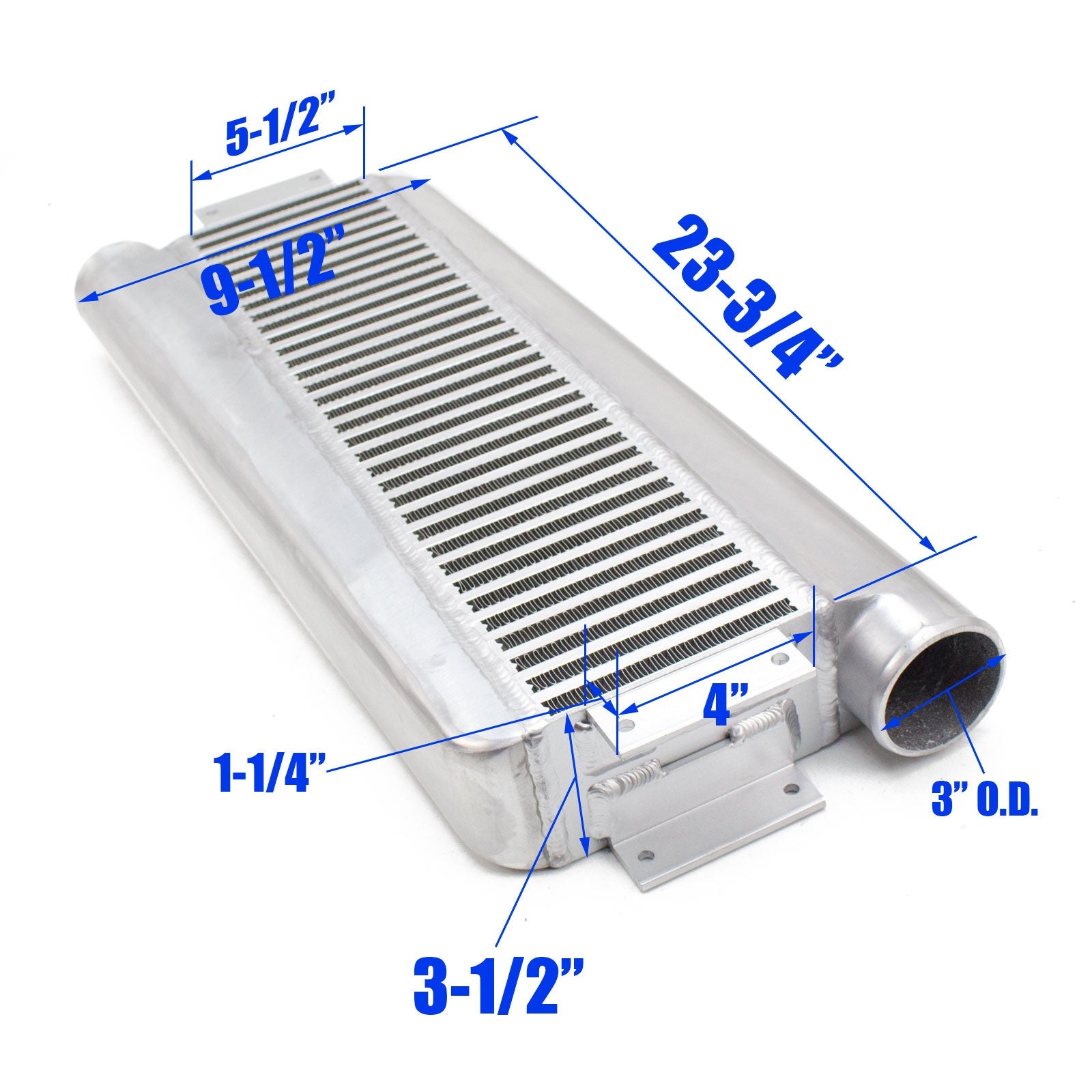

Core Length: 23
Core Height: 5.5"
Core Thickness: 3.5"
Inlet / Outlet Size: 3"
End to End Length: 26-1/4"
Compress Airflow Rate:500 cubic feet/min, 500HP max
Working Pressure: 35-40 psi
Pressure Drop: 0.2-0.5 @15psi, 2-5psi @35psi
Material: 100% Aluminum

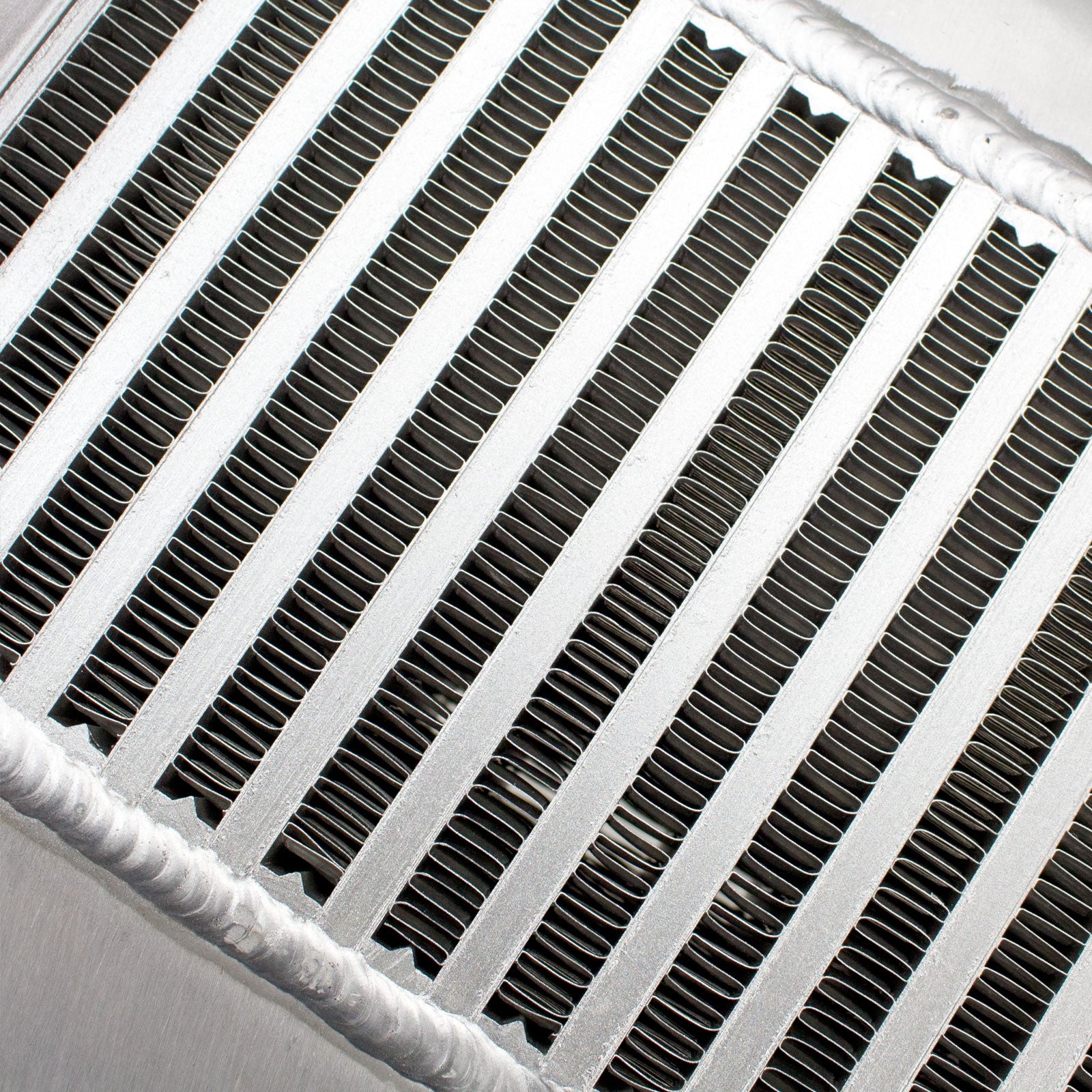

Design: Bar and Plate = High Flow
Construction: Machine Cut & Stamped, Hand Welded
Finish: Polished
Net Weight: 14 lbs
