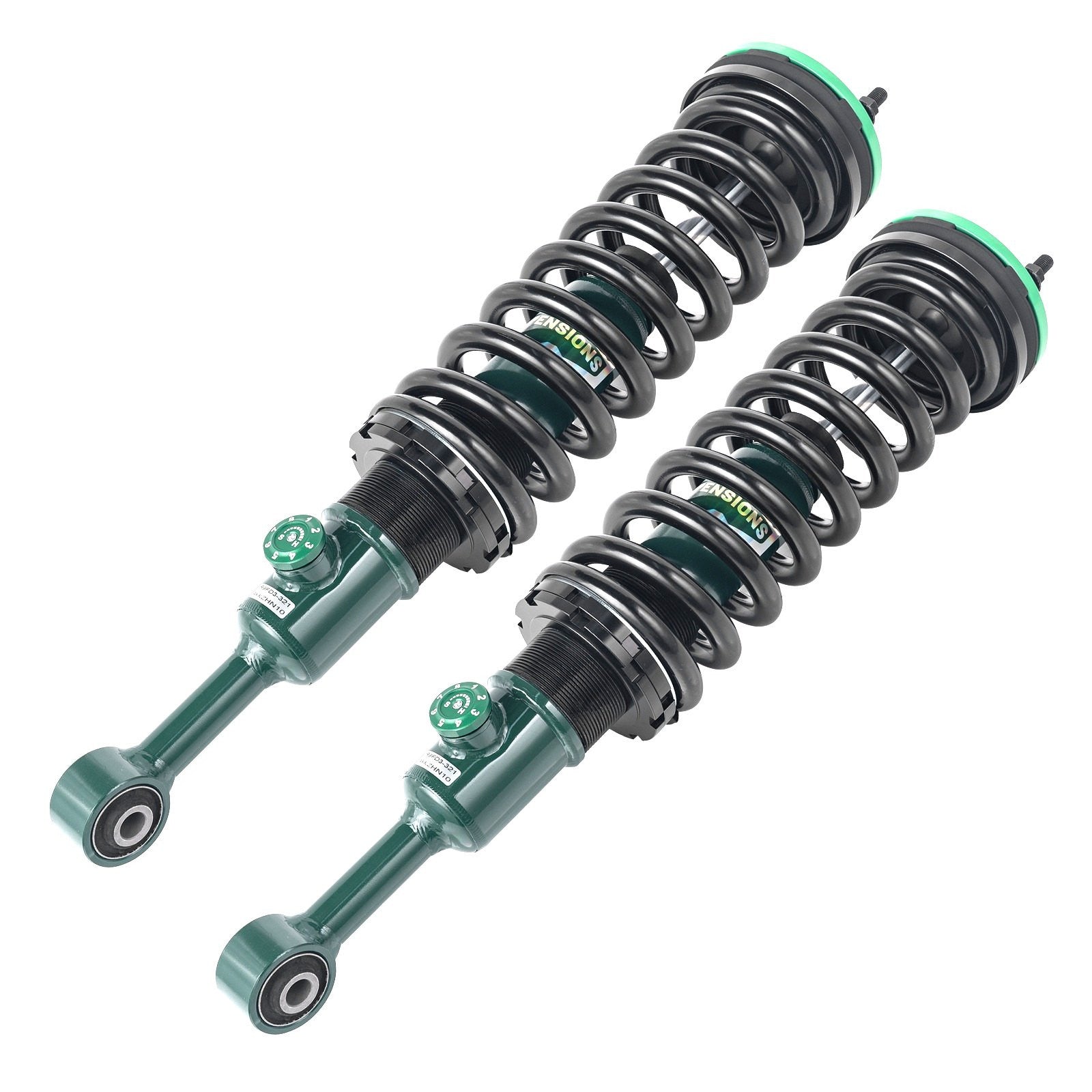

Rocky Road Adjustable Leveling Front Struts for Toyota Tacoma 4WD (N3X0) 2016–2023 – 0–2" Lift

Rocky Road Adjustable Leveling Front Struts for Toyota Tacoma 4WD (N3X0) 2016–2023 – 0–2" Lift

SKU: R9FD3-321

Upgrade the front suspension of your Toyota Tacoma 4WD (N3X0, 2016–2023) with the Rocky Road Adjustable Leveling Front Struts. Designed for versatility and performance, these struts allow you to level your truck, adjust ride height, and fine-tune damping to suit your driving style—whether on the highway, towing, or off-road adventures.

Featuring 8 levels of adjustable rebound, these struts provide a customizable balance between comfort and control. Combined with a heavy-duty 57mm twin-tube construction, they offer consistent performance, durability, and heat resistance for long-lasting reliability. Ideal for lifting up to 2 inches at the front while maintaining precise suspension control.

Key Features

• Designed for Toyota Tacoma 4WD (N3X0) 2016–2023

• Adjustable front lift: 0–2 inches for leveling or larger tire clearance

• 8-level rebound adjustment for fine-tuned ride performance

• Heavy-duty 57mm twin-tube body for strength and fade-free performance

• Improves handling, stability, and load-carrying performance

• Reduces body roll and enhances off-road capability

Adjustment Guide

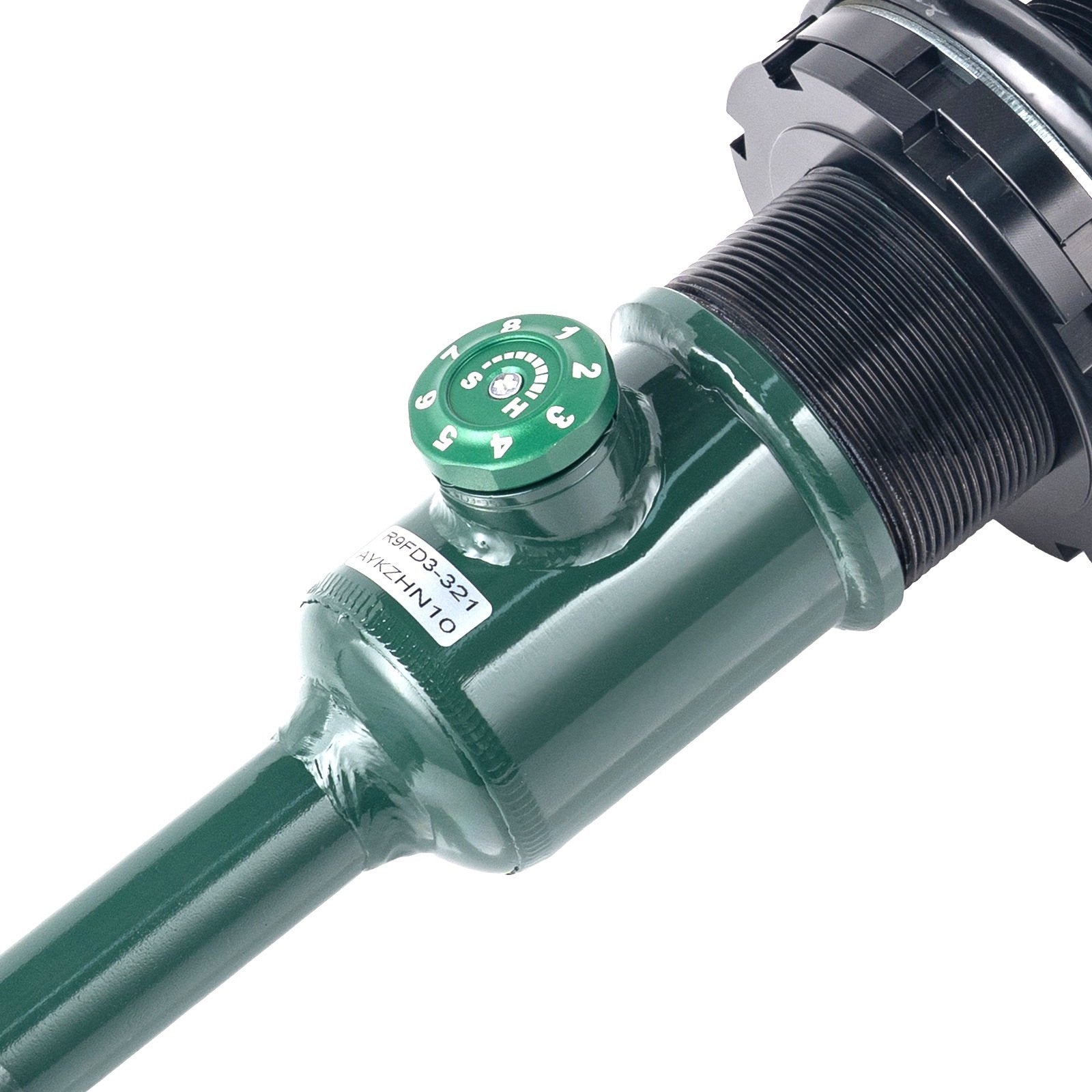

The struts use a fixed-pointer reference system, with the 12 o’clock position serving as the permanent set point. The knob rotates 360° for over-torque protection, while internal detents lock each level in place.

• Levels 1–3 (Firm): Heavy loads, towing, off-road

• Levels 4–6 (Medium): Mixed use and light loads

• Levels 7–8 (Soft): Empty truck, daily driving

Specifications

• Height Adjustment: Yes, 0–2 inches

• Damping Levels: 8-level adjustable

• Spring Rate: 650 lbs/in

• Spring Length: 356 mm (14.02 in)

• Spring Inner Diameter: 75 mm (2.95 in)

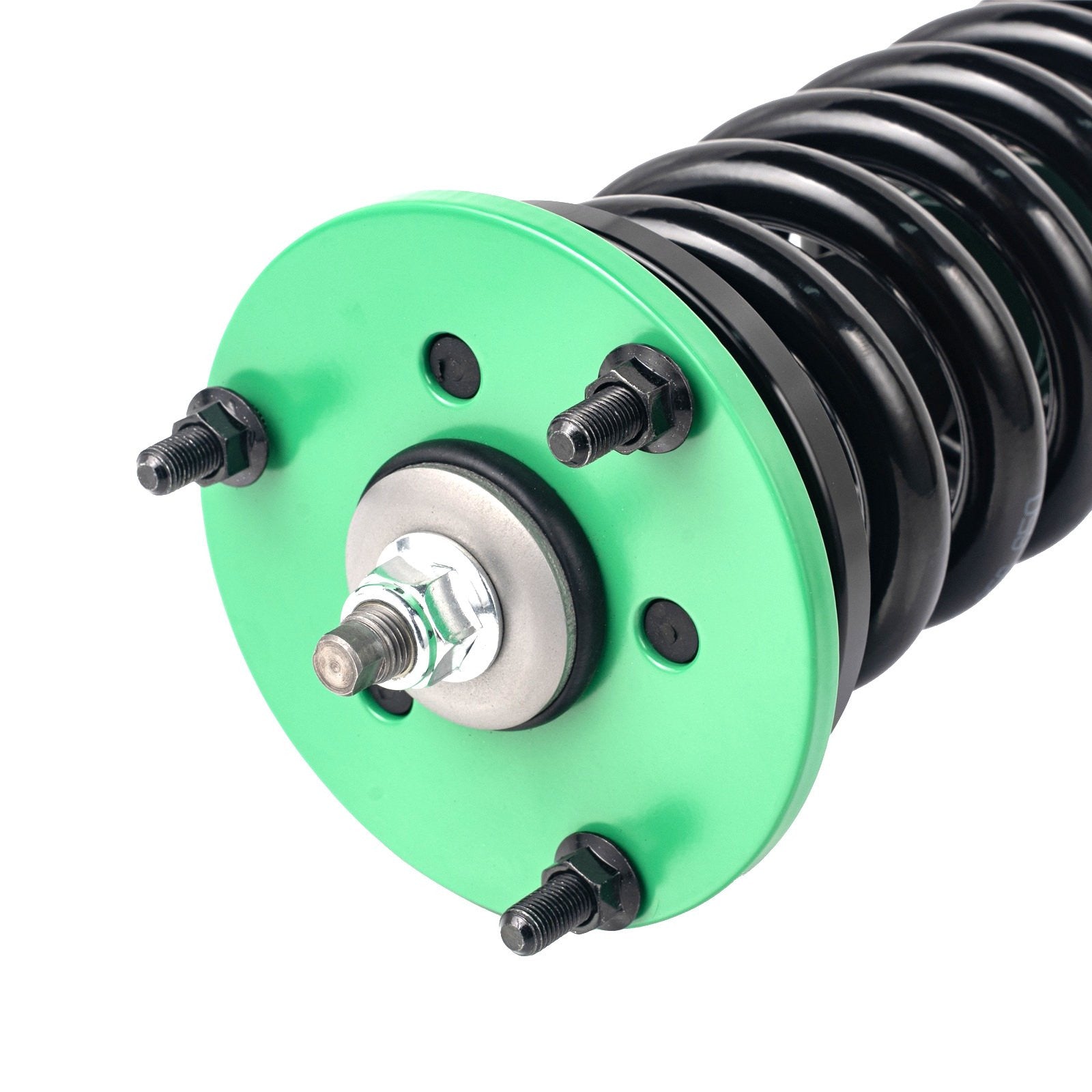

• Front Top Mount: Standard type included

• Extended Length: 565 mm (22.24 in)

• Compressed Length: 425 mm (16.73 in)

• Shock Travel: 140 mm (5.51 in)

Warranty: 365-day limited warranty from the date of purchase. Proof of purchase required. Warranty is non-transferable.
