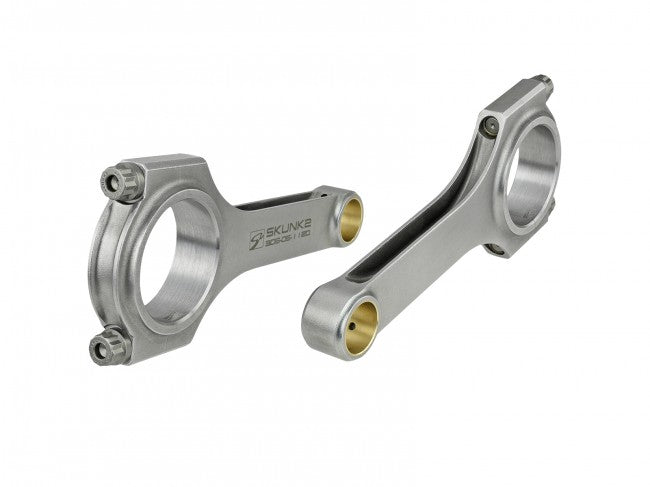

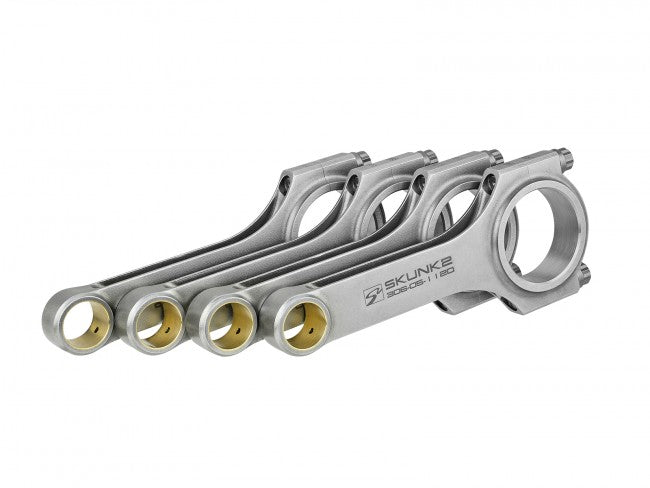

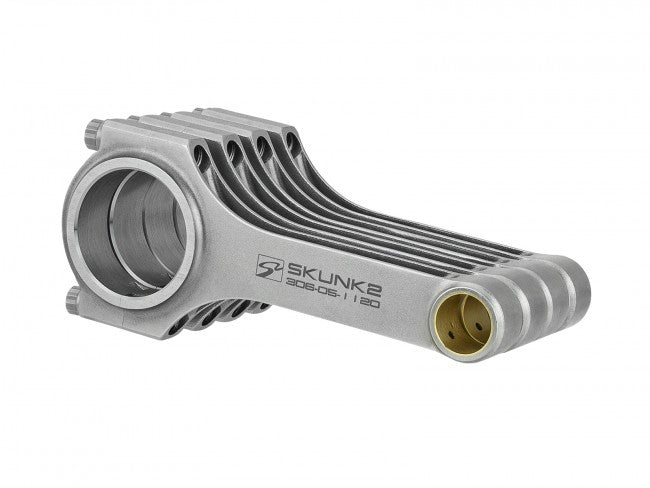

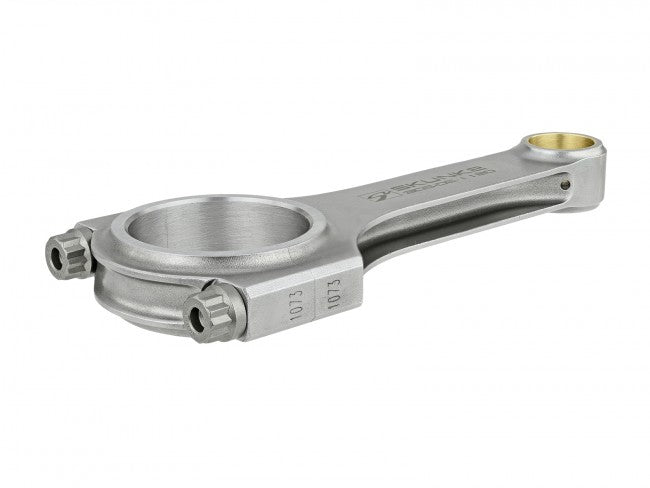

Alpha Series Connecting Rods for the Honda SOHC D16A and ZC engines (with Vitara pistons).
1988 - 2000 Honda Civic (1.6L EX SOHC D Series)
1993 - 1997 Honda Del Sol (1.6L Si SOHC D Series)
1988 - 1991 Honda CR-X (1.6L Si SOHC D Series)

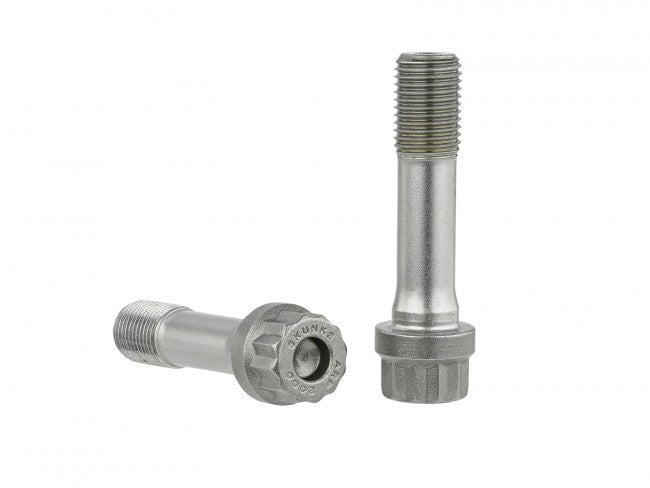

Skunk2 Alpha Series Rods feature an H-Beam design that is precision CNC machined from high-strength aircraft-grade 4340 alloy steel forgings that are then heat treated, tempered, and shot peen stress relieved. Skunk2 Alpha rods come with bronze wrist pin bushings and feature forced pin oiling. Each rod incorporates ARP2000 fasteners rated at over 220,000psi and can handle between 175hp to 200hp per cylinder on average.
Features:
Forged 4340 Alloy Steel Bronze Wrist Pin Bushings Forced Pin Oiling Shot Peen Stress Relieved Balanced to within +/- 1 gram 3/8-Inch ARP2000 Rod Bolts Included

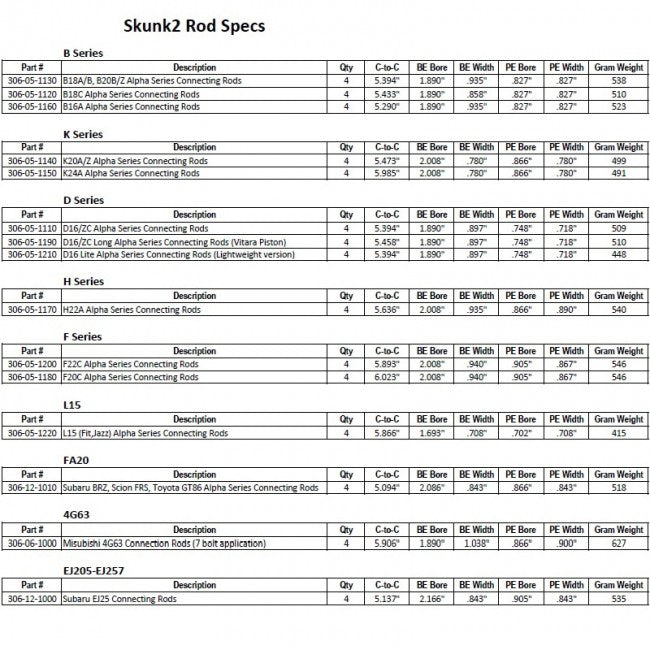

Specifications:
Set of: 4 rods Weight: 510 grams C-to-C: 138.63 mm B.E. Bore: 48 mm B.E. Width: 22.81 mm P.E. Bore: 19.02 mm P.E. Width: 18.19 mm
