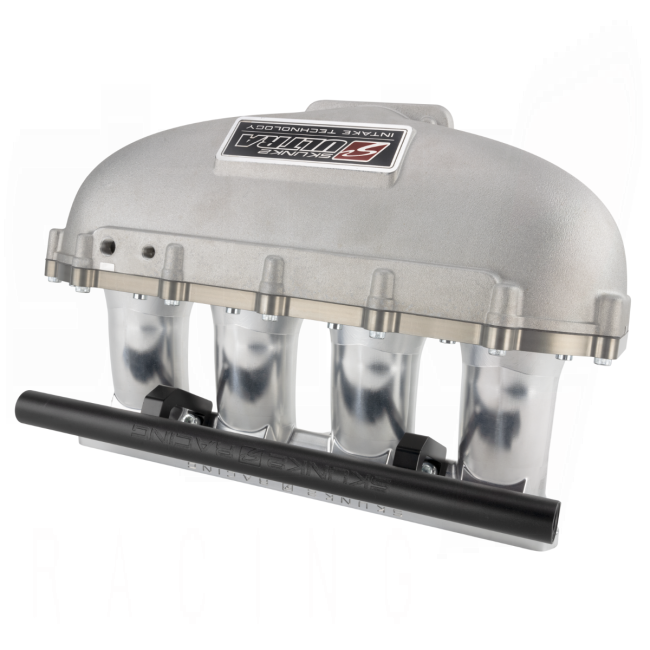

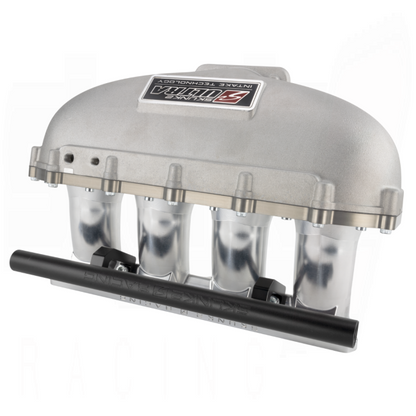

Skunk2 Ultra Race Billet Centerfeed Intake Manifold – Honda K20/K24

Skunk2 Ultra Race Billet Centerfeed Intake Manifold – Honda K20/K24

Part Number: X307-05-0400

Product Description:

The Skunk2 Ultra Race Billet Centerfeed Intake Manifold for Honda K-Series engines is engineered for extreme high-horsepower street and race applications requiring maximum airflow, fuel delivery, and tuning flexibility. Designed specifically for serious naturally aspirated and forced induction builds, this billet manifold features a top-side 8-injector single fuel rail configuration combined with a centerfeed plenum layout for balanced airflow distribution and exceptional performance potential.

Precision CNC-machined billet tapered runners paired with a large modular plenum provide optimized airflow characteristics designed for maximum top-end horsepower and high RPM efficiency. Developed using advanced CFD analysis and extensive dyno testing, the Ultra Race manifold delivers race-proven performance for competitive applications.

The short high-volume tapered runners with trumpet-profile entries maximize airflow velocity and upper RPM power, while the modular plenum design allows users to increase plenum volume using optional spacers for additional tuning capability. The runners are also designed to allow further porting for custom high-flow race applications.

Built for racers and enthusiasts pushing the limits of Honda K20 and K24 engines, the Skunk2 Ultra Race Billet Centerfeed Intake Manifold combines premium billet construction, aggressive styling, and uncompromising performance.

Note: Does not fit K20C engine variants.

Key Features:

• Genuine Skunk2 Ultra Race Billet Intake Manifold
• Designed for Honda K20 and K24 high-performance applications
• Centerfeed plenum design for balanced airflow distribution
• Single rail top-mount 8-injector setup
• CNC-machined billet tapered intake runners
• Trumpet-profile runner entries for optimized airflow velocity
• Modular removable cast plenum design
• Adjustable plenum volume using optional spacers
• Port-ready runners for additional airflow capability
• Optimized using CFD analysis and dyno testing
• Large 90mm throttle body flange
• Standard Ford 5.0 throttle body bolt pattern
• Includes thermal intake manifold gasket
• Ideal for turbocharged and race engine builds

Performance Benefits:

• Exceptional top-end horsepower gains
• Improved airflow efficiency and fuel delivery capacity
• Optimized high-RPM engine performance
• Supports large injectors and high-boost applications
• Enhanced tuning flexibility for custom race setups
• Premium billet construction for durability and appearance

Fitment:

Compatible with Honda and Acura K-Series engines, including:

• K20A / K20A2 / K20A3
• K20Z1 / K20Z3
• K24A / K24A2 / K24A4
• K24A8

Compatible chassis include:

• Honda Civic EG / EK / EP3 / FG / FK
• Honda CRX
• Acura RSX DC5
• Acura TSX
• Honda Accord K-Series swaps
• Honda S2000 K-swaps
• Other Honda/Acura K-Series swapped vehicles

Does NOT fit:

• Honda K20C engine variants

Installation Notes:

• Intended for high-performance street and race applications
• Professional installation and engine tuning recommended
• Additional fuel system upgrades may be required depending on power goals
• Compatible with large throttle body configurations utilizing 90mm flange setup
• Limited-production billet manifold availability may vary
