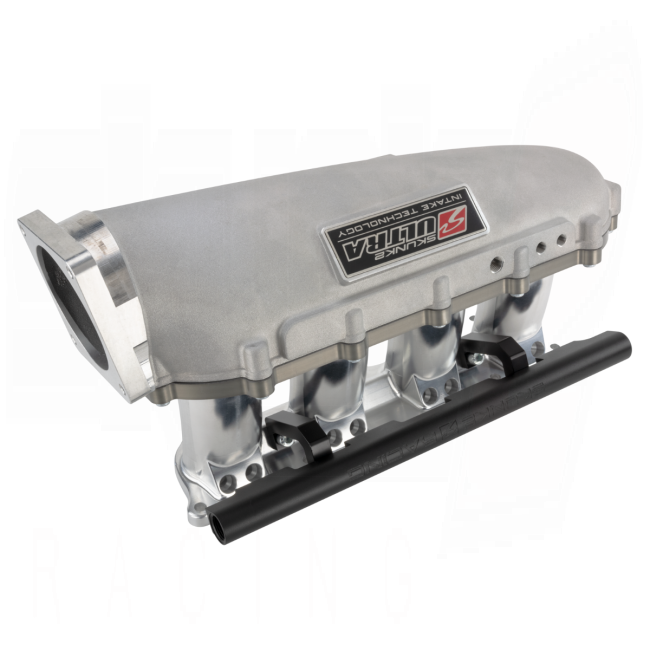

Skunk2 Ultra Race Billet Side-Feed Intake Manifold – Honda K20/K24

Skunk2 Ultra Race Billet Side-Feed Intake Manifold – Honda K20/K24

Part Number: X307-05-0350

Product Description:

The Skunk2 Ultra Race Billet Side-Feed Intake Manifold for Honda K-Series engines is engineered for extreme high-horsepower street and race applications demanding maximum airflow and fuel delivery performance. Designed specifically for serious naturally aspirated and forced induction builds, this billet intake manifold features a top-side 8-injector single fuel rail configuration for advanced fueling capability and clean engine bay integration.

Precision CNC-machined billet tapered runners combined with a large modular plenum deliver exceptional airflow characteristics optimized for maximum top-end horsepower and high RPM efficiency. Developed using CFD analysis and extensive dyno testing, the Ultra Race manifold is built to outperform conventional intake manifold designs in demanding racing environments.

The short high-volume tapered runners with trumpet-profile entries are specifically engineered to maximize airflow velocity and upper RPM performance. Its modular plenum system allows users to easily increase plenum volume using optional spacers while also allowing runner porting for even greater airflow and custom tuning capability.

Built for enthusiasts and racers pushing the limits of the Honda K20 and K24 platforms, the Skunk2 Ultra Race Billet Side-Feed Intake Manifold delivers race-proven performance with premium billet construction and aggressive styling.

Note: Does not fit K20C engine variants.

Key Features:

• Genuine Skunk2 Ultra Race Billet Intake Manifold
• Designed for Honda K20 and K24 high-performance applications
• Side-feed plenum configuration
• Single rail top-mount 8-injector setup
• CNC-machined billet tapered intake runners
• Trumpet-profile runner entries for optimized airflow
• Modular removable cast plenum design
• Adjustable plenum volume using optional spacers
• Port-ready runners for additional airflow capability
• Optimized using CFD analysis and dyno testing
• Large 90mm throttle body flange
• Standard Ford 5.0 throttle body bolt pattern
• Includes thermal intake manifold gasket
• Ideal for turbocharged and race engine builds

Performance Benefits:

• Maximum top-end horsepower potential
• Increased airflow efficiency and fuel delivery capacity
• Improved high-RPM engine performance
• Supports large injectors and high-boost setups
• Enhanced tuning flexibility for custom race applications
• Premium billet appearance and durability

Fitment:

Compatible with Honda and Acura K-Series engines, including:

• K20A / K20A2 / K20A3
• K20Z1 / K20Z3
• K24A / K24A2 / K24A4
• K24A8

Compatible chassis include:

• Honda Civic EG / EK / EP3 / FG / FK
• Honda CRX
• Acura RSX DC5
• Acura TSX
• Honda Accord K-Series swaps
• Honda S2000 K-swaps
• Other Honda/Acura K-Series swapped vehicles

Does NOT fit:

• Honda K20C engine variants

Installation Notes:

• Intended for high-performance street and race applications
• Professional installation and engine tuning recommended
• Additional fuel system upgrades may be required depending on power goals
• Compatible with large throttle body configurations utilizing 90mm flange setup
• Limited-production billet manifold availability may vary
